CanSat Telemetry Kit Arduino Nano BMP280 NRF24L01 Real-Time Data Transmission
Build a Real-Time Data Payload with Arduino Nano, BMP280, and NRF24L01
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Designed for space and rocketry simulation, this CanSat kit lets you build a miniature satellite payload that captures atmospheric pressure, altitude, inertial motion, and GPS coordinates mid-flight, then streams every data point over NRF24L01 radio to your laptop ground station. From campus CanSat competitions to Smart India Hackathon aerospace challenges, it's a launch-ready telemetry backbone that turns raw sensor data into real-time insights.
What You'll Build
You'll assemble and code a fully functional CanSat telemetry system that fits inside a standard 125mm x 66mm cylindrical payload bay. The airborne module reads BMP280 pressure/altitude, MPU6050 gyroscope/accelerometer, and NEO-6M GPS, then transmits via NRF24L01. On the ground, a second Arduino Nano with OLED displays live data and logs to microSD. By the end, you'll have a wireless link proven across 100+ meters, ready for drop tests or launch tower integration.
What You'll Learn
- Configure NRF24L01 modules for stable, low-latency telemetry over 2.4 GHz
- Fuse BMP280 pressure readings with MPU6050 motion data for orientation-aware altitude estimation
- Parse NEO-6M NMEA sentences and transmit compact data packets
- Design a dual-Arduino system with OLED display, SD logging, and USB-powered ground station

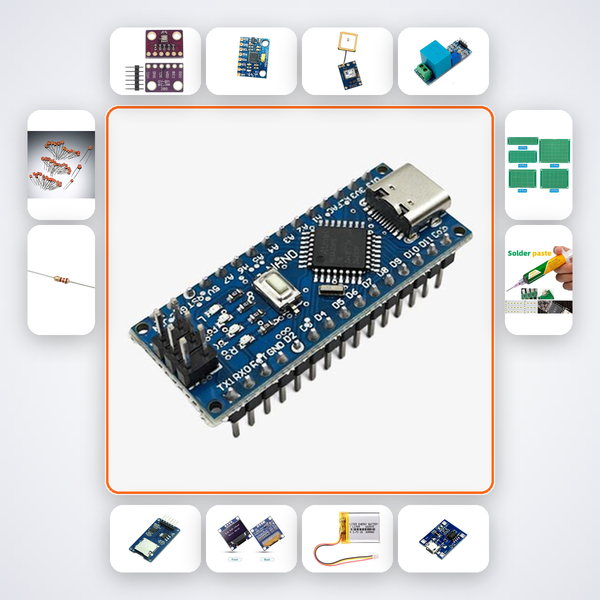

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 2 |
| BMP280 | 1 |
| MPU6050 | 1 |
| NEO-6M GPS | 1 |
| NRF24L01 | 2 |
| MicroSD Module | 1 |
| 0.96in OLED | 1 |
| 3.7V LiPo 500mAh | 1 |
| TP4056 Module | 1 |
| 100nF Caps | 10 |
| 4.7k? Resistors | 5 |
| PCB Prototype Board | 3 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Tailored for B.Tech ECE/EEE students working on CanSat competitions, Smart India Hackathon aerospace themes, and final-year telemetry projects. IIT, NIT, VIT, and BITS teams use layouts like this for ground station proof-of-concepts. CBSE Class 12 enthusiasts with prior Arduino experience will also find the soldering and radio debugging a powerful next step.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to chat with the AI companion trained on this CanSat kit, or message us on WhatsApp for direct troubleshooting help.
What range can I expect from the NRF24L01 telemetry link?
With the included PCB antenna and proper capacitor decoupling, you'll get 100-150 meters open-air. For competition safety, the system is stable even when the payload is in a moving CanSat shell.
Is this kit compliant with international CanSat competition rules?
The payload dimensions (Arduino Nano + modules) fit standard 66mm diameter cans. The 2.4 GHz telemetry aligns with most rules; always verify your competition's frequency table before launch day.
Do I need to know soldering to use this kit?
Yes-advanced-level kit. The PCB prototype boards require soldering modules and caps. The included soldering iron and wire make it a one-box build, and the AI guide shows connection close-ups.
CanSat-sized payload transmits BMP280, MPU6050 and GPS data over NRF24L01 to a ground station in real time.
What's in this kit
Choose your assembly option:
- Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
Other projects you can build
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
