GPS Rocket Tracker Kit - Arduino Nano LoRa Real-Time Positioning
GPS Rocket Tracker Kit with Arduino Nano & LoRa - Real-Time Bearing and Distance
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
When you launch a high-power rocket, recovering it without a live tracking system becomes a gamble across open terrain. This kit lets you build a complete LoRa-based tracking pair: a compact transmitter that rides inside the rocket and beams GPS coordinates to a hand-held receiver that computes compass bearing and slant distance, so you walk straight to the landing spot.
What You'll Build
You'll assemble two Arduino Nano boards into a matched transmitter-receiver system. The rocket-borne unit reads NEO-6M GPS data and streams it over 433 MHz LoRa. The ground receiver displays bearing and distance on a 0.96-inch OLED, using IMU heading from its MPU6050. Everything runs on rechargeable LiPo cells with integrated charging, so you can prep at the launch field and test repeatedly.
What You'll Learn
- Parse raw NMEA GPS sentences and extract latitude, longitude, and altitude
- Configure RA-02 LoRa modules for long-range point-to-point data telemetry
- Drive a 0.96-inch SSD1306 OLED display over I2C with custom font rendering
- Read MPU6050 accelerometer and gyroscope to compute compass heading without a magnetometer
- Manage dual 3.7 V LiPo power with TP4056 charge controllers and decoupling capacitors

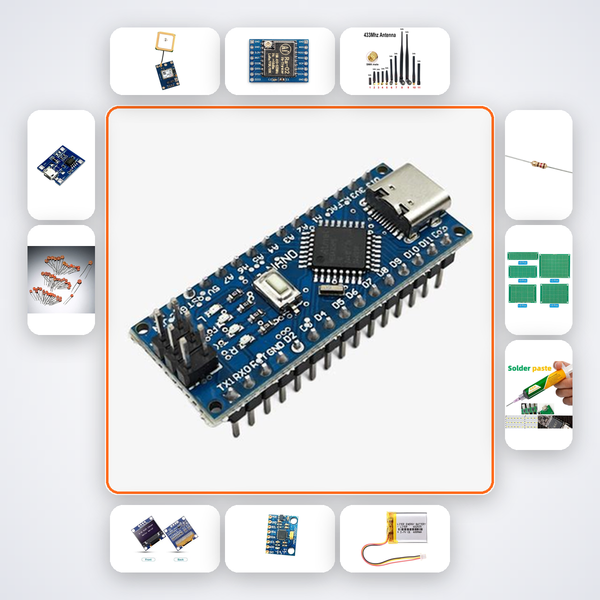

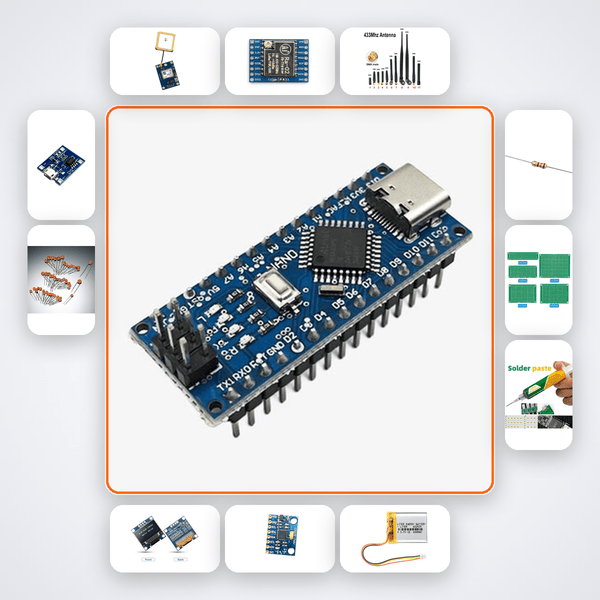

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 2 |
| NEO-6M GPS | 1 |
| RA-02 LoRa | 2 |
| 433MHz Antenna | 2 |
| 0.96in OLED | 2 |
| MPU6050 | 1 |
| 3.7V LiPo 500mAh | 2 |
| TP4056 Module | 2 |
| 100nF Caps | 10 |
| 4.7k? Resistors | 5 |
| PCB Prototype Board | 3 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This advanced kit fits B.Tech ECE and aerospace engineering students working on telemetry capstones, Smart India Hackathon participants tackling space-Tech challenges, and rocketry clubs at IITs, NITs, and BITS Pilani. If you prepare for ATL Tinkering Lab demos or need a ready-to-assemble payload for experimental sounding rockets, the pre-tested hardware removes integration guesswork so you can focus on flight results.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to launch the AI companion that walks you through wiring, code upload, and debugging; you can also send a WhatsApp message to our Bengaluru support team for a same-day reply.
Is the 433 MHz LoRa frequency legal for rocketry in India?
Yes, the 433-434 MHz ISM band is license-free in India for low-power telemetry applications, and the included helical antennas keep the ERP well within WPC limits.
Does the kit include the rocket airframe?
No, you'll need your own rocket; the electronics payload fits inside a 40 mm diameter coupler tube and weighs under 60 grams ready to fly.
What range can I expect between the transmitter and receiver?
With clear line-of-sight and the 433 MHz quarter-wave antennas, you typically get 2-5 km. Actual range depends on rocket altitude and ground clutter; you can later upgrade to a yagi antenna for better directivity.
Fitness - GPS-tracked rocket transmits position over LoRa to a hand-held receiver showing bearing and distance to land.
What's in this kit
Choose your assembly option:
- Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
