BMP280 Barometric Pressure Starter Kit with Arduino Uno + BMP280
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
BMP280 Barometric Pressure Starter Kit: Arduino Uno, OLED — a beginner-level kit.
BMP280 Barometric Pressure Starter Kit: Arduino Uno, OLED
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A BMP280 starter: learn I2C by reading air pressure and temperature from a BMP280 on an Arduino Uno, then estimate your altitude from the pressure and show all three on an OLED.

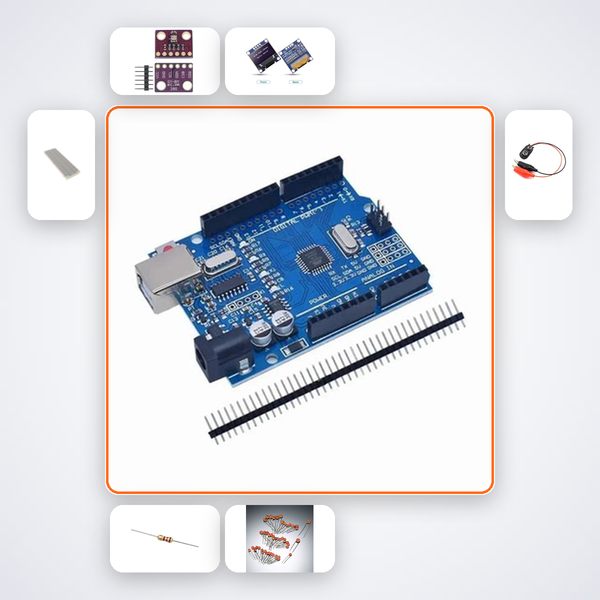

What's in the box
- Arduino Uno R3
- BMP280
- 0.96in OLED
- 4.7kΩ Resistors × 5
- 100nF Caps × 5
- 400-pt Breadboard
- M-M Wires × 20
- 9V Battery Snap
Power: 9V battery, not included.
Skill level: Beginner (2-3 hours, no soldering).
Frequently asked questions
How accurate is the altitude?
Within a few metres once you set today's sea-level pressure.
Can it measure water pressure?
No. It's an air pressure sensor.
With this kit, you’ll build a compact device that reads barometric pressure and temperature over I2C from the BMP280 sensor, then converts pressure to an accurate altitude estimate — just like a digital altimeter. The result appears live on a crisp 0.96-inch OLED, turning raw environmental data into a practical altitude monitor you can carry anywhere.
What You'll Build
You will assemble a fully functional barometric altimeter and thermometer on a solderless breadboard. The Arduino Uno reads the BMP280’s pressure and temperature, applies the barometric formula to compute altitude above sea level, and displays the values on the OLED in real time. You’ll have a portable science gadget that demonstrates atmospheric physics in your hands.
What You'll Learn
- Interface I2C sensors with Arduino, using the Wire library to talk to the BMP280 and OLED
- Read barometric pressure in Pascals and temperature in Celsius, then convert to user-friendly units
- Estimate altitude using the international barometric formula and calibrate for local sea-level pressure
- Display multiple sensor readings on a 0.96-inch I2C OLED screen, managing layout and refresh
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| BMP280 | 1 |
| 0.96in OLED | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Caps | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| 9V Battery Snap | 1 |
Who This Kit Is For
Designed for curious minds starting at age 10, this kit fits CBSE physics and IoT projects, ATL Tinkering Lab explorations, and beginner hobbyists who want a first success with I2C sensors. Parents and educators will appreciate the no‑soldering build and the instant feedback of the OLED display — perfect for demonstrating atmospheric pressure concepts in a tangible way.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to chat with the AI companion, which walks you through every wiring step and code upload. If you prefer, we’re also available on WhatsApp for quick human help.
Can I use this kit outdoors to track altitude on a hike?
Yes. Mount it in a small enclosure with the battery and it will give live altitude readings. Remember that changes in local weather affect sea‑level pressure, so you may need to recalibrate — the AI companion shows you how.
Do I need any other equipment besides what’s in the kit?
You’ll need a computer (Windows, Mac, or Linux) with a USB port to upload code to the Arduino Uno. No external programmer or soldering tools are required.
BMP280 measures air pressure and temperature over I2C. Display altitude estimate on OLED.
What's in this kit
- Arduino Uno R3
- BMP280
- 0.96in OLED
- 4.7kΩ Resistors x5
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- 9V Battery Snap
