Generative AI Reactive Art Installation
Build a Generative AI Reactive Art Installation with Arduino & Linux
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
This advanced project fuses hardware sensing with generative AI. An Arduino collects temperature, humidity, sound levels, and motion data, then relays them to a Linux machine running a micro Stable Diffusion model. The output—unique 16x16 pixel art—illuminates a WS2812B LED matrix in real time, creating a mood-reactive centrepiece for any room.
What You'll Build
A wall-mountable reactive art installation that reads the room's mood through sensors and displays AI-generated pixel art on a vibrant 16x16 LED grid. Every environmental condition—warm or cool, loud or quiet, still or active—produces a distinct visual pattern, making the piece a living conversation starter and a showcase of AI-driven physical computing.
What You'll Learn
- Integrating multiple sensors (DHT22, MEMS mic, accelerometer/gyroscope) with Arduino
- Deploying and running a lightweight Stable Diffusion model on a Linux system
- Driving a 256-LED WS2812B matrix with precise timing and power management
- Soldering and assembling a robust enclosure-ready prototype

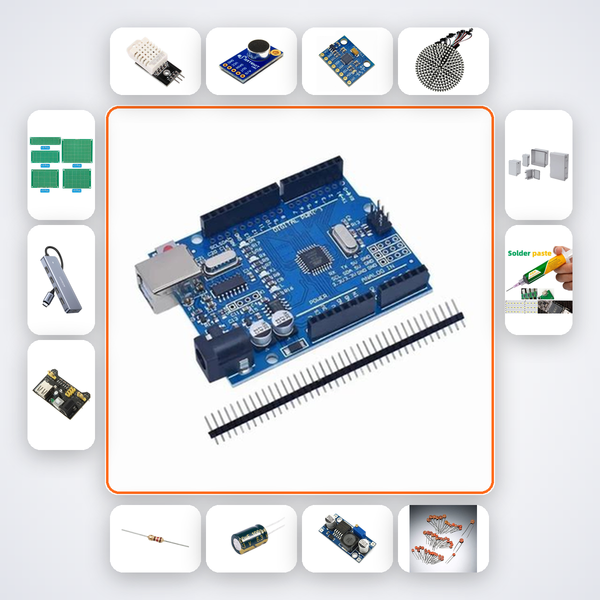

Kit Contents
| Component | Quantity |
|---|---|
| Arduino UNO Q | 1 |
| DHT22 Temperature & Humidity Sensor | 1 |
| MAX9814 Microphone Amplifier | 1 |
| MPU6050 Accelerometer & Gyroscope | 1 |
| WS2812B 16x16 LED Matrix (256 LEDs) | 1 |
| 470Ω Resistors | 5 |
| 1000µF 6.3V Capacitors | 2 |
| LM2596 Buck Converter | 1 |
| 100nF Capacitors | 10 |
| PCB Prototype Boards | 2 |
| USB-C Hub | 1 |
| 5V 10A Power Supply | 1 |
| Enclosure Box | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Advanced makers, final-year B.Tech ECE/EEE students, and researchers blending generative AI with physical computing. Ideal for Smart India Hackathon hardware tracks or creators building interactive installations for tech festivals at IITs, NITs, VIT, or BITS Pilani. You should be comfortable with soldering, Arduino coding, and basic Linux commands.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to access the AI companion, which has been pre-trained on every step of this exact project. If you need a human touch, WhatsApp our Bengaluru team for direct support.
Do I need a separate Linux computer to run the Stable Diffusion model?
Yes, this kit provides all hardware components to build the installation; you'll need a Linux machine (Raspberry Pi 4/5, Jetson Nano, or a PC) with sufficient RAM. The AI companion will guide you through installing the micro Stable Diffusion model and interfacing it with the Arduino over serial.
Can I modify the pixel art generation logic?
Absolutely. The AI companion includes code examples for altering the conditioning from sensor data. You can tweak the Stable Diffusion prompts or switch to other generative models to create entirely new visual styles.
Is soldering experience required?
Yes, advanced soldering skills are needed to assemble the LED matrix, sensor circuits, and power distribution on the prototype boards. The kit includes a soldering iron and wire, and the AI companion provides detailed soldering guides for a clean build.
Stable Diffusion micro model on Linux generates pixel art from sensor mood data. WS2812B matrix renders output.
What's in this kit
- Arduino UNO Q
- DHT22
- MAX9814 Mic Amp
- MPU6050
- WS2812B 256-LED 16x16 Matrix
- 470Ω Resistors x5
- 1000µF 6.3V Caps x2
- LM2596 Buck Converter
- 100nF Caps x10
- PCB Prototype Board x2
- USB-C Hub
- 5V 10A PSU
- Enclosure Box
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
