Net Shortwave Radiation Monitor Kit with ESP32 + BH1750

SKU: CDN-KIT-0199-SLD Brand: Compoden Category: Electronics > Weather & Environment > Project Kits
Rs. 2,570.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Net Shortwave Radiation Monitor Kit with ESP32 + BH1750 — an expert-level kit.

Build a Dual-Sensor Net Shortwave Radiation Monitor with ESP32

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 12-15 hours Skill: Environmental IoT Data Logging

Kit at a glance

What you build: A solar-powered light balance logger: one BH1750 faces the sky and one faces the ground, and an ESP32 logs both, and the ratio between them, to microSD with DS3231 timestamps. Compare grass, soil, concrete or snow to see how much light each surface reflects.

What's in the box

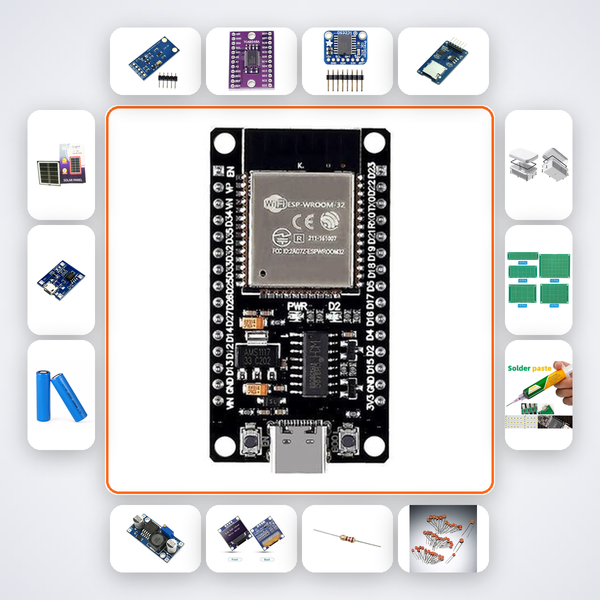

  • ESP32 Dev Board
  • BH1750 × 2
  • TCA9548A I2C Mux
  • DS3231 RTC
  • MicroSD Module
  • LM2596 Buck Converter
  • 0.96in OLED
  • 4.7kΩ Resistors × 10
  • 100nF Caps × 10
  • Solar Panel 6V 2W
  • TP4056 Module
  • 18650 Cell × 2
  • Waterproof Enclosure
  • PCB Prototype Board × 2
  • Soldering Iron
  • Solder Wire
  • 18650 2-Cell Holder

Power: batteries included (2 × 18650), charged by the solar panel. A microSD card is not included.

Skill level: Advanced (12-15 hours).

Frequently asked questions

What is albedo?

The share of incoming light a surface reflects. Fresh snow reflects far more than dark soil.

Does it measure solar energy in W/m²?

No. The BH1750 measures visible light in lux, so readings are relative, not energy.

Why an I2C multiplexer?

Two identical BH1750s can clash on the bus, and the multiplexer keeps them apart.

This kit equips you to assemble a professional-grade solar radiation balance monitor. By positioning two BH1750 luminance sensors—one facing up to capture incoming solar radiation and one facing down to measure reflected radiation from the ground—you compute net shortwave flux. An ESP32 microcontroller logs readings directly to the cloud, making it indispensable for climate research, microclimate analysis in agriculture, and advanced DIY weather stations.
