INA219 Power Monitor Starter Kit Kit with Arduino Uno + Sensor
INA219 Power Monitor Kit with Arduino Uno – Live Wattage Display
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Curious about your gadgets’ power consumption? Build a live power monitor that displays voltage, current, and wattage on an LCD. This kit introduces I2C sensor communication and real‑time measurement—perfect for beginners.
What You'll Build
A working power meter that reads DC power from any source (0–26V) and updates a 16x2 LCD every second. You can test batteries, USB chargers, and small motors to see live power draw and better understand energy use.
What You'll Learn
- Connecting an INA219 sensor over I2C to Arduino Uno
- Reading voltage, current, and power with simple Arduino code
- Driving a 16x2 LCD through an I2C backpack for clear readouts
- Observing real‑time power changes and linking them to device behavior

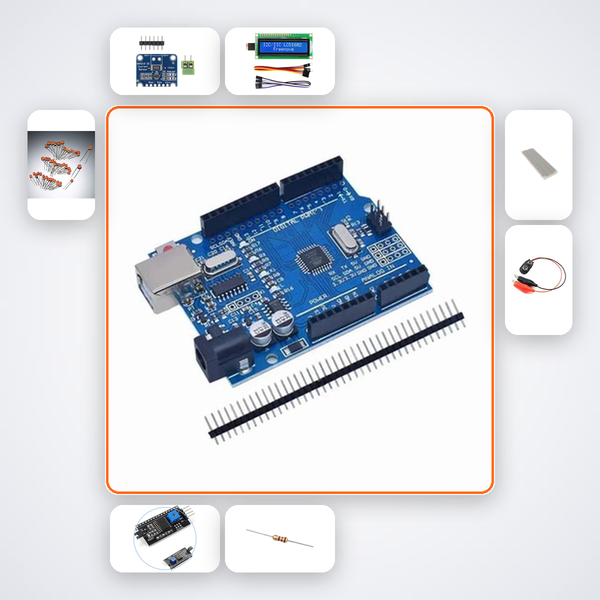

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| INA219 Power Sensor | 1 |
| 16x2 LCD | 1 |
| I2C Backpack | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Caps | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| 9V Battery Snap | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Ideal for CBSE Class 8–12 students building physics and electronics projects, ATL Tinkering Lab participants, and B.Tech ECE/EEE first-year mini‑project builders. Also a great first electronics kit for curious minds aged 10 and above who want to go beyond blinking LEDs.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project – accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the QR code on the box to launch your AI build companion, which provides step‑by‑step debugging for this exact project. You can also reach out via WhatsApp
INA219 measures voltage, current and power over I2C. LCD shows live watts to understand device power draw.
What's in this kit
Other projects you can build
