Medical Vitals Scoring Dashboard Kit with Arduino Uno
Medical Vitals Scoring Dashboard Kit with Arduino Uno – Build a NEWS2-Style Early Warning System
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Transform raw vital signs into a clinical-grade early warning dashboard. This kit lets you build a portable medical scoring system that continuously reads SpO2, heart rate, and body temperature, then displays a calculated NEWS2 (National Early Warning Score) on a vibrant TFT screen—just like the tools used in hospital triage. You’ll solder the components, flash the Arduino, and hold a working prototype that many biomedical engineering students only see in textbooks.
What You'll Build
You will assemble and program a self-contained device that clips onto a finger to monitor oxygen saturation and pulse, while a waterproof probe measures temperature. The Arduino calculates composite risk scores and renders them in clear, colour-coded bands on a 2.4-inch display, complete with trend graphs and alert thresholds. The finished dashboard can run on a 9V battery, making it suitable for portable health monitoring or as a demonstration prototype for academic projects.
What You'll Learn
- Calibrate a MAX30102 pulse oximeter for accurate SpO2 and heart rate readings
- Interface a DS18B20 digital temperature sensor over OneWire protocol
- Compute a multi-parameter early warning score using weighted clinical logic
- Render dynamic dashboards with bar graphs, trend lines, and colour alerts on an ILI9341 TFT display
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| MAX30102 | 1 |
| DS18B20 Probe | 1 |

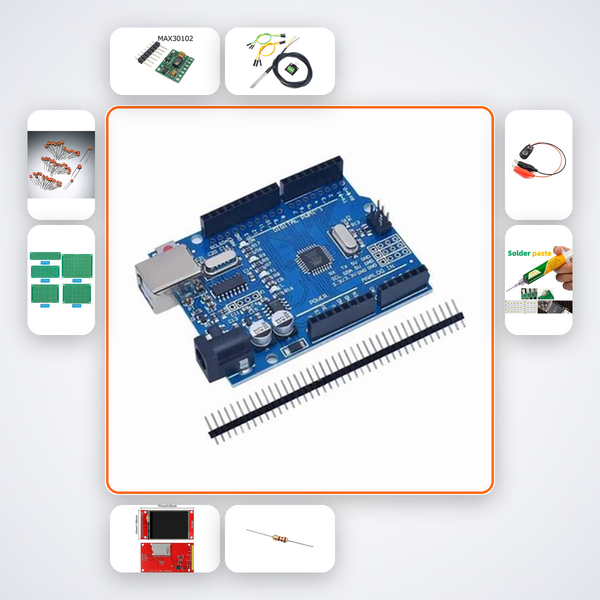

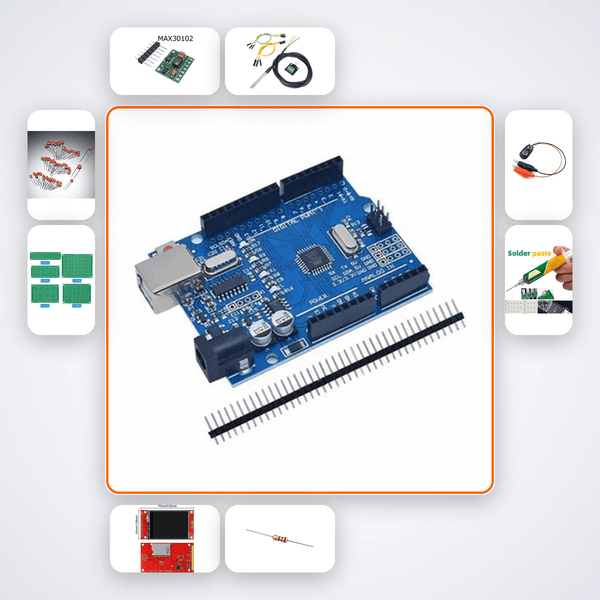

| 2.4in TFT ILI9341 | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Capacitors | 5 |
| PCB Prototype Board | 2 |
| 9V Battery Snap | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit is designed for B.Tech ECE/EEE students working on biomedical instrument projects, healthcare hackathon participants (Smart India Hackathon), and researchers prototyping remote patient monitoring solutions. It is also suitable for CBSE Class 12 students building public health awareness demonstrations, provided they have soldering experience. If you have built a basic Arduino project before and are ready to handle surface-mount sensor modules and multi-variable scoring algorithms, this kit will challenge and reward you.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to access the AI build companion trained on this kit, or reach out via WhatsApp for real-time guidance from our support team.
Does the kit include instructions for calibrating the MAX30102 sensor?
Yes, the AI companion walks you through calibration routines and the WhatsApp support team can help with signal noise issues specific to your assembly.
Can I extend the system to log data wirelessly?
The hardware is focused on local display, but the Arduino’s serial output can be used with an external Bluetooth module (not included) to stream vitals. The code can be modified to add wireless logging.
Is this suitable for a health monitoring final-year project?
Absolutely. Many B.Tech and M.Tech students use this kit as a base for biomedical projects, and the NEWS2 logic gives it strong academic relevance. You can expand it with your own sensors or cloud connectivity.
