3D Sensor Trajectory Plotter Kit with Arduino Uno + MPU6050
Build a 3D Motion Trajectory Plotter with Arduino Uno + MPU6050
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Build a device that captures real-world motion and renders its path as a live wireframe trajectory on an OLED. The MPU6050 accelerometer and gyroscope data is double-integrated to compute position, and a simple tap resets the display for a new trace. This kit transforms raw sensor data into a compelling visual of movement in three dimensions.
What You'll Build
You'll assemble a self-contained trajectory plotter that attaches to any moving object. As you move the board, the OLED shows a 3D wireframe trail of its path, updating in real time. A built-in DS3231 real-time clock and microSD module allow you to log timestamped motion data for later 3D reconstruction in Python or MATLAB. The entire system resets on a double-tap, so you can capture multiple sequences without rebooting.
What You'll Learn
- Double-integration of accelerometer data to estimate 3D position
- Gyroscope drift compensation using complementary filtering
- Rendering 3D wireframe graphics on a 128x64 OLED display
- Data logging to microSD with real-time clock stamping

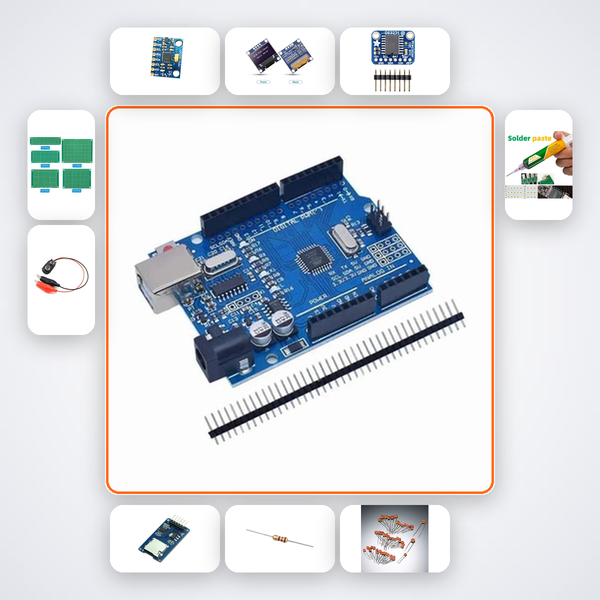

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| MPU6050 | 1 |
| 0.96in OLED | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Caps | 5 |
| PCB Prototype Board | 2 |
| 9V Battery Snap | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit is built for engineering undergraduates (B.Tech ECE/EEE) working on sensor fusion or data visualization projects, especially those participating in Smart India Hackathon or building capstone prototypes. It’s also ideal for IIT, NIT, VIT, and BITS Pilani students exploring mechatronics, and for ATL Tinkering Labs running advanced workshops on motion tracking. If you need a reliable, pre-tested sensor system that demonstrates mathematical integration in a tangible way, this is your project.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the AI companion on your phone via QR code; it will walk you through each step with images and test points. You can also message us on WhatsApp for direct support.
How does double-integration of MPU6050 data work?
The accelerometer outputs linear acceleration; we integrate this over time
MPU6050 integrated twice. OLED renders 3D wire frame trajectory trace. Resets on tap.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
