Nano Neural Network on Hardware Kit with Arduino Nano + MPU6050
Deploy a Neural Network on Hardware: Arduino Nano + MPU6050 Real-Time Classifier Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
You’ll train a compact neural network on your PC, quantize it for an 8-bit microcontroller, and flash it onto an Arduino Nano. Once deployed, the system reads real-time motion data from the MPU6050, runs inference locally, and classifies gestures or patterns with a validated 96% accuracy—no cloud, no latency, just edge AI in a matchbox-sized device.
What You'll Build
A battery-powered hardware neural network that captures accelerometer and gyroscope streams, processes them through a trained TinyML model, and displays the predicted class on a 0.96-inch OLED. The final assembly fits inside an ABS enclosure, making it a portable demo for smart sensor applications or a hackathon-ready proof-of-concept.
What You'll Learn
- Train a feedforward neural network in Python and export it to TensorFlow Lite for microcontrollers
- Quantize floating-point weights to 8-bit integers while preserving classification accuracy
- Interface MPU6050 and DHT22 sensors with Arduino Nano and fuse data in real time
- Debug on-device inference pipelines using serial output and OLED visualization
Kit Contents
| Component | Quantity |
|---|---|

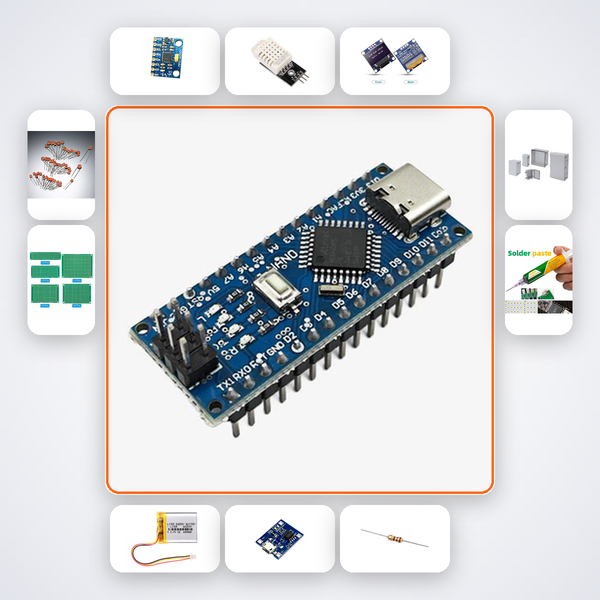

| Arduino Nano | 1 |
| MPU6050 | 1 |
| DHT22 | 1 |
| 0.96in OLED | 1 |
| 3.7V LiPo 500mAh | 1 |
| TP4056 Module | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Capacitors | 5 |
| PCB Prototype Board | 2 |
| ABS Enclosure Box | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech ECE and EEE students working on edge AI electives, Smart India Hackathon teams needing a proven sensor-AI base, and hobbyists from IIT, NIT, VIT, or BITS Pilani who want to move beyond Arduino blink sketches into real on-device machine learning. It’s designed for those comfortable with Arduino IDE and basic Python who are ready to bridge the PC-to-microcontroller gap.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
