Home › Digital Twin Factory Lab Kit: Pi 5 + 5 ESP32 Sensor Nodes
Pi 5 Digital Twin Factory Floor - Compoden
In Stock

Digital Twin Factory Lab Kit: Pi 5 + 5 ESP32 Sensor Nodes

SKU: CDN-KIT-2318 Brand: Compoden Category: Electronics > AI IoT > Project Kits
Rs. 37,120.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Digital Twin Factory Lab Kit: Pi 5 + 5 ESP32 Sensor Nodes — an intermediate-level kit.

Digital Twin Factory Lab Kit: Pi 5 + 5 ESP32 Sensor Nodes

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Intermediate Build Time: 6-8 hrs Skill: Industrial IoT & Digital Twin Modeling

Kit at a glance

What you build: A digital twin lab: five ESP32 nodes stream temperature, humidity (DHT22) and vibration (ADXL345) to a Raspberry Pi 5, which keeps a live software model of each station. When a node drifts away from what the model expects, the Pi raises an alert.

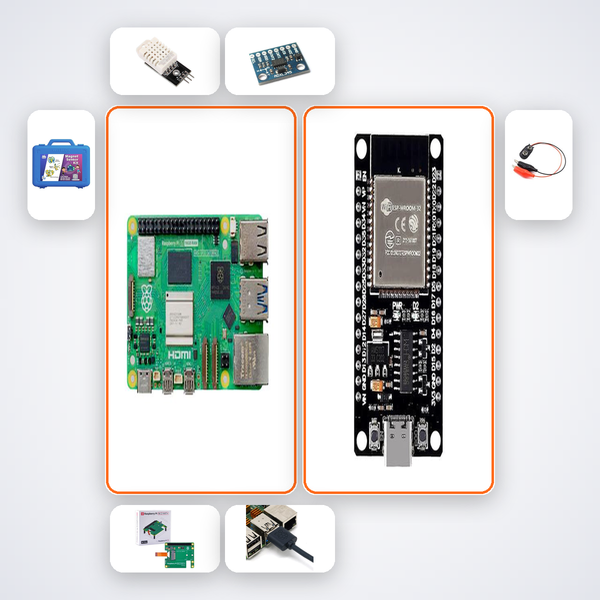

What's in the box

  • Raspberry Pi 5 8GB
  • ESP32 Dev Board × 5
  • DHT22 × 5
  • ADXL345 × 5
  • NVMe SSD 256GB
  • Pi 5 M.2 HAT+
  • USB-C PSU
  • MicroUSB Cable × 5
  • Ethernet Switch 8-port
  • M-M Wires × 40

Power: USB-C supply for the Pi included; the ESP32s need USB chargers, not included.

Skill level: Intermediate (6-8 hours).

Frequently asked questions

What is a digital twin?

A software copy of a physical thing that updates from live data, so you can compare what is happening with what should happen.

Is it a factory safety system?

No. It's a desk-scale learning lab.

Mirror a real factory floor inside a Raspberry Pi 5 in real time. Five ESP32 sensor nodes capture temperature, humidity, and vibration from different zones, streaming data to a central twin model. When the digital twin detects an anomaly — like sudden vibration on a virtual conveyor — it instantly triggers a physical alert, giving you hands-on exposure to Industry 4.0 predictive maintenance systems.

What You'll Build

You will assemble a functional industrial IoT prototype with five wireless sensing stations. Each node reports environmental telemetry to the Pi 5, which maintains a live digital twin dashboard. The finished build mimics a factory where the twin runs always-on anomaly detection — a spike in vibration raises a visible or audible alarm, exactly as in smart factories.

What You'll Learn

  • Program ESP32 boards to read DHT22 (temperature/humidity) and ADXL345 (3-axis vibration) sensors
  • Stream real-time sensor data over Ethernet using lightweight IoT protocols
  • Set up Raspberry Pi 5 with M.2 NVMe storage for fast database logging and twin model persistence
  • Design threshold-based anomaly detection logic and link it to a physical alert output

Kit Contents

Component Quantity
Raspberry Pi 5 8GB 1
ESP32 Dev Board 5
DHT22 5
ADXL345 5
NVMe SSD 256GB 1
Pi 5 M.2 HAT+ 1
USB-C PSU 1
MicroUSB Cable 5
Ethernet Switch 8-port 1
M-M Wires 40

Who This Kit Is For

Built for B.Tech ECE, EEE, and CSE students working on IoT internships or capstone projects. Ideal for Smart India Hackathon participants needing a ready-to-demo Industry 4.0 prototype. Also fits CBSE IoT practicals and ATL Tinkering Labs looking for an intermediate automation challenge.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR on the box to chat with the AI companion, trained on this specific setup. For deeper hurdles, shoot us a WhatsApp message and we'll reply.

Can I expand the system to more than five sensor nodes?

Absolutely. The Pi 5 digital twin model and Ethernet switch support up to 8 wired nodes out of the box; you can scale further by adding another switch and ESP32 boards.

Is the digital twin a 3D visual model or just a data dashboard?

The project guides you to build a real-time data dashboard with live graphs and status indicators. With additional Python libraries, you can overlay the data onto a 3D plant layout.

What kind of physical alert can I trigger?

The guide shows you how to connect a buzzer, LED, or relay module to the Pi's GPIO pins — anything that makes sense for your factory mock-up. A red beacon or alarm sound is a common choice.

Shipping Information

  • Prepaid Orders: ₹45 for orders up to ₹1,999, FREE shipping above ₹1,999
  • COD Orders: ₹45 shipping for orders up to ₹1,999, FREE shipping above ₹1,999. COD available.
  • Delivery Timeline: Dispatch in 3-7 days, delivery in 2-7 days depending on location

Returns & Warranty

  • 7-Day Return: Manufacturing defects only (approval required)
  • Warranty: 7 days from delivery
  • Non-Returnable: Batteries, consumables, cut wires, clearance items

View complete shipping policy →

View complete returns policy →

How to set up your kit

See all how-to videos →
