Portable Solar Generator Monitor Kit with Arduino Nano + LED

SKU: CDN-KIT-1893-CL Brand: Compoden Category: Electronics > Power & Energy > Project Kits
Rs. 1,960.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Portable Solar Generator Monitor Kit with Arduino Nano + LED — an intermediate-level kit.

See Exactly Where Your Solar Energy Flows — Build a 3-Channel Portable Power Monitor with Arduino Nano and OLED

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Intermediate Build Time: 3-4 hrs Skill: Multi-channel power monitoring and data visualization

Most off-grid solar projects fly blind — you only see battery voltage, never the full journey from panel to load. This kit changes that. You'll build a handheld monitor that simultaneously measures solar panel input, charge controller output, and load consumption, then shows a live power flow diagram on a crisp OLED screen. With timestamped microSD logging, you can finally diagnose energy losses and optimize your system like a real field engineer.

What You'll Build

A portable analyzer that plugs into any small solar generator (up to 26V) via three INA219 sensor channels. The OLED display draws an animated power flow arrow from panel to battery and out to load, with real-time watts, volts, and amps. All readings are stamped with date and time from the DS3231 RTC and saved to microSD, giving you a complete energy diary you can review later on a computer.

What You'll Learn

  • Wiring and reading three INA219 high-side current sensors simultaneously over I2C using a TCA9548A multiplexer
  • Drawing dynamic power-flow graphics on a 0.96-inch OLED with live numerical updates
  • Logging multi-channel power data to a microSD card in CSV format with DS3231 RTC timestamps
  • Designing a self-contained monitor that runs from a 9V battery and interprets complete energy flow in a solar system

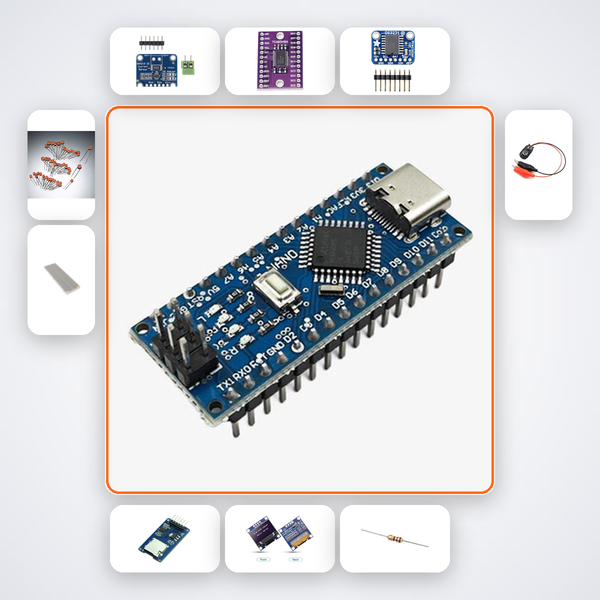

Kit Contents

Component Quantity
Arduino Nano 1
INA219 3
TCA9548A I2C Mux 1
DS3231 RTC 1
MicroSD Module 1
0.96in OLED 1
4.7kΩ Resistors 5
100nF Capacitors 5
400-pt Breadboard 1
M-M Wires 20
9V Battery Snap 1

Who This Kit Is For

Perfect for CBSE students tackling physics practicals and renewable energy demonstrations, B.Tech ECE/EEE undergraduates building a mini-project on solar analytics, and participants in Smart India Hackathon hardware challenges. ATL Tinkering Labs and IIT/NIT/VIT/BITS clubs will find this an ideal hands‑on introduction to energy monitoring and data logging without soldering.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Open the AI companion from the QR code — it knows every connection and line of code for this kit. If you still have questions, message us on WhatsApp and a real engineer will help you diagnose the issue.

Can I connect this to a 12V solar panel directly?

Yes. Each INA219 channel handles up to 26V and ±3.2A, so typical 12V panels and loads are well within range. The kit does not include a panel or battery; it's a monitor you attach to your existing generator.

Does the microSD card come formatted and included?

The kit includes the microSD breakout module but not the card itself. Any FAT32-formatted microSD up to 32GB works — just pop it in and the firmware will create a new CSV log file.

Can I view logged data without a computer?

The OLED shows live readings without any external device. To analyze logs, transfer the microSD to a laptop or phone; the CSV opens directly in any spreadsheet app for graphing your solar energy data.

INA219 on panel, charge controller output and load simultaneously. OLED shows power flow diagram.
