Battery Management System BMS Demo Kit with Arduino Mega + Relay

SKU: CDN-KIT-1841-CL-SLD Brand: Compoden Category: Electronics > Power & Energy > Project Kits
Rs. 2,600.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Battery Management System BMS Demo Kit with Arduino Mega + Relay — an intermediate-level kit.

Build a 4-Cell Battery Management System with Arduino Mega and INA219 Sensors

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Intermediate Build Time: 5-6 hrs Skill: Battery management & data logging

Kit at a glance

What you build: A four-cell battery monitor: four INA219 sensors on a TCA9548A I2C multiplexer report voltage and current to an Arduino Mega, which logs the readings to microSD with DS3231 timestamps. Two relays disconnect the pack or the load when a limit is crossed.

What's in the box

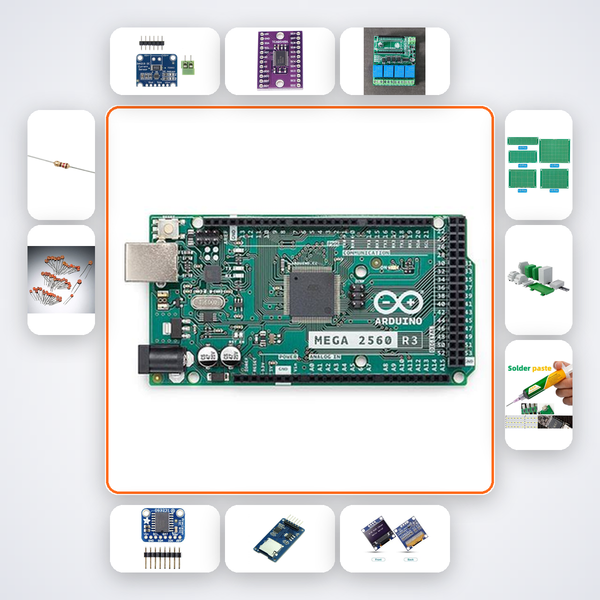

  • Arduino Mega 2560
  • INA219 × 4
  • TCA9548A I2C Mux
  • 5V Relay Module × 2
  • DS3231 RTC
  • MicroSD Module
  • 0.96in OLED
  • 4.7kΩ Resistors × 5
  • 100nF Caps × 15
  • PCB Prototype Board × 2
  • DIN Rail Enclosure
  • Soldering Iron
  • Solder Wire

Power: batteries not included. The Li-ion cells to be monitored are not in the box, and neither is a microSD card.

Skill level: Intermediate (5-6 hours, soldering).

Frequently asked questions

Are the battery cells included?

No. Bring your own Li-ion cells and handle them with care.

Why is there an I2C multiplexer?

INA219 boards share a small set of addresses, and the multiplexer lets the Mega talk to all four.

Is this a real BMS for a battery pack?

It's a demo for learning how protection works, not a certified pack protector.

Build a fully functional 4-cell Li-ion battery management system that monitors each cell’s voltage and current in real time, triggers relay cutoff during over-voltage, under-voltage, or over-current faults, and logs everything on a microSD card — just like the protection circuits inside electric vehicles and solar storage units.
