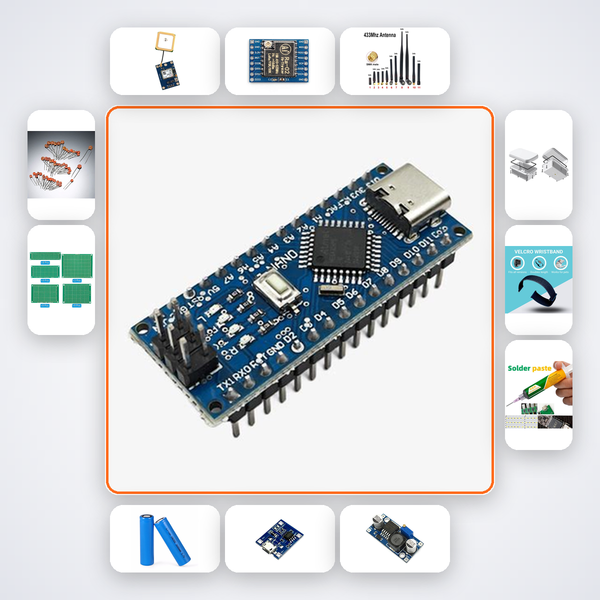

Precision Cattle Grazing Tracker Variant 5 Kit with Arduino Nano + LoRa
Precision Cattle Grazing Tracker Variant 5 Kit with Arduino Nano + LoRa
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Turn your grazing land into a data‑driven farm. With this kit you build four solar‑ready GPS collars and a LoRa receiver that pings cattle positions every 5 minutes to a web dashboard — giving ranchers, dairy cooperatives, and agri‑researchers real‑time insights for rotational grazing, health monitoring, and theft prevention.
What You'll Build
You’ll assemble four collar tags around Arduino Nano, NEO‑6M GPS, and RA‑02 LoRa, each powered by a rechargeable 18650 cell. Then you’ll construct a central LoRa gateway that collects each tag’s location and feeds a dashboard where you can view live herd positions, travel paths, and heatmaps. Waterproof enclosures keep everything working through dust and monsoon rain.
What You'll Learn
- Program low‑power GPS tracker collars with Arduino Nano and parse NMEA sentences from NEO‑6M
- Build a 433 MHz LoRa point‑to‑multipoint network that runs on minimal power for days
- Design a battery‑operated field device with TP4056 charging, LM2596 regulation, and decoupling capacitors
- Visualise real‑time cattle positions and historical movement on a web dashboard via serial‑to‑web bridge
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 4 |
| NEO-6M GPS | 4 |
| RA-02 LoRa | 5 |
| 433MHz Antenna | 5 |
| 18650 Cell | 4 |
| TP4056 Module | 4 |
| LM2596 Buck Converter | 4 |
| 100nF Capacitor | 20 |
| PCB Prototype Board | 5 |
| Waterproof Enclosures | 4 |
| Velcro Collar | 4 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Progressive dairy farmers, cooperative managers, and agri‑tech entrepreneurs who need a low‑infrastructure way to track grazing patterns. B.Tech ECE/Agriculture students working on Smart India Hackathon solutions or final‑year IoT‑based animal monitoring projects. ATL Tinkering Lab mentors and veterinary researchers studying heat detection and locomotion behaviour.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Access the AI companion via the QR code on the box, or send a WhatsApp message — our support team has built this kit multiple times and will guide you step by step.
How far can the LoRa signal reach in open fields?
The RA‑02 modules on 433 MHz typically achieve 1–2 km line‑of‑sight. Mounting the gateway antenna high can extend coverage to cover most medium‑sized paddocks.
Can I add more cattle collars later?
Yes, the gateway firmware supports up to 20 collar IDs by default. You can duplicate the collar build with additional Arduino Nano, GPS, and LoRa modules purchased separately.
Is the collar safe for the animal during monsoon?
The IP65 waterproof enclosure protects the electronics, and the velcro strap is adjustable and non‑irritating. The collar is designed to withstand normal grazing, rubbing, and heavy rain.
GPS collar tag with RA-02 LoRa transmits location every 5 minutes. Gateway maps herd movement on web dashboard.
What's in this kit
- Arduino Nano x4
- NEO-6M GPS x4
- RA-02 LoRa x5
- 433MHz Antenna x5
- 18650 Cell x4
- TP4056 Module x4
- LM2596 Buck Converter x4
- 100nF Caps x20
- PCB Prototype Board x5
- Waterproof Enclosures x4
- Velcro Collar x4
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
