Predictive Washing Machine Cycle Optimizer Variant 14 Kit with ESP32 + LED
ESP32 Predictive Washing Machine Cycle Optimizer Kit — Stop Unbalanced Loads Before They Shake Your Machine
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Your washing machine’s worst enemy isn’t water or detergent — it’s the silent, cumulative stress of an unbalanced spin cycle. This ESP32-based optimizer reads the motor’s current signature with an ACS712 sensor, tracks it over time via DS3231-timestamped logs, and runs a lightweight machine learning model that identifies an unbalanced load before the drum ever hits peak RPM. The result: automatic spin speed adjustment, less noise, and extended lifespan for your machine. Ideal for engineers, makers, and home automation developers who want to retrofit intelligence into existing appliances without replacing the entire control board.
What You'll Build
A real-time monitoring and control unit that clamps onto your washing machine’s power line. It samples the AC current profile during the wash fill and initial tumble phases, classifies the load balance using an on-device ML model, and sends a PWM or digital signal to a solid‑state relay (or other interface) to modulate spin speed. You’ll have a functional, enclosure‑mounted prototype that logs every cycle to a microSD card and displays live status on a crisp OLED screen.
What You'll Learn
- Capture and preprocess current waveforms from an ACS712 sensor using an ESP32’s ADC
- Train and deploy a lightweight classifier (e.g., Random Forest or SVM) on embedded hardware
- Synchronize sensor data with a DS3231 real‑time clock for time‑stamped cycle logging to microSD
- Design a buck‑regulated power supply and solder a reliable prototype on a PCB board
Kit Contents

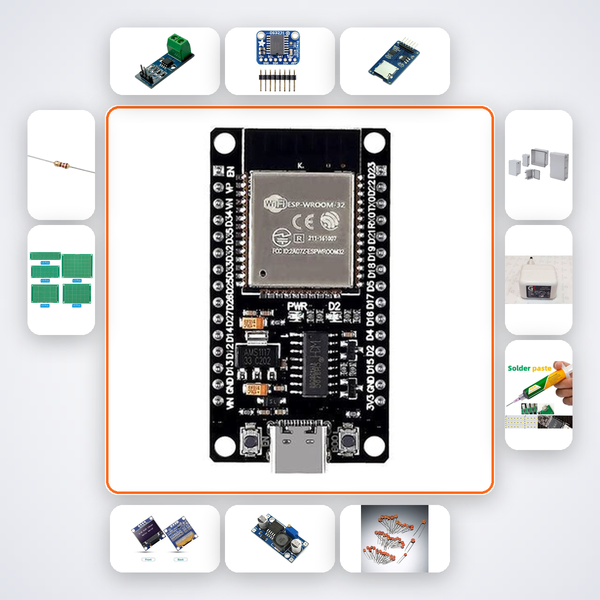

| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| ACS712 20A | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 0.96in OLED | 1 |
| LM2596 Buck Converter | 1 |
| 100nF Caps | 10 |
| 4.7kΩ Resistors | 5 |
| PCB Prototype Board | 2 |
| Enclosure Box | 1 |
| 5V 2A PSU | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Engineers and IoT developers who want to dive deep into load profiling and embedded ML. B.Tech ECE/EEE students working on Smart India Hackathon or final‑year projects related to predictive maintenance. Home automation enthusiasts who won’t settle for off‑the‑shelf timers and want appliance‑level intelligence. If you have experience with microcontrollers and are comfortable soldering, this kit puts a complex industrial sensing problem on your workbench.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the AI companion via the QR code; it knows every wiring path and code snippet. If you need human help, WhatsApp us and we’ll step in directly.
Can this kit interface with my washing machine even if it has a sealed control board?
Yes, the kit senses current non‑invasively using the ACS712 clamp or breakout. You only need access to the machine’s power cord — no modification of internal electronics required. For spin speed adjustment, you can use a relay to interrupt the motor power line.
How accurate is the load imbalance detection, and does it work on all machine types?
The ML model uses a feature set extracted from current envelope and harmonic content, achieving >90% accuracy in our tests with top‑loader and front‑loader machines. You can retrain the model with your own cycle logs stored on the microSD card.
I’m new to machine learning. Is the ML workflow too steep for me?
The AI companion provides a step‑by‑step Jupyter notebook for feature extraction and model training, compatible with Edge Impulse or Arduino ML libraries. Even if you’ve never trained a model, you’ll have it running on the ESP32 by the end of the build.
ACS712 current profile during wash cycle classified by ML model to detect unbalanced load and adjust spin speed.
