Rocket Motor Casing Pressure Test Rig Variant 29 Kit with Arduino Mega
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Rocket Motor Casing Pressure Test Rig Variant 29 Kit with Arduino Mega — an expert-level kit for adults.
Arduino Mega 4-Port Hydrostatic Pressure Test Rig — Safety-Interlocked Rocket Casing Validation
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 1-5 days.
This kit turns raw components into a bench-top hydrostatic test station that validates the structural integrity of rocket motor casings before live firing. Four MPX5700 pressure transducers monitor casing ports simultaneously while an Arduino Mega runs a hardwired safety interlock—cutting off the pump the instant any pressure channel exceeds its threshold. The result is a repeatable, data-logged, safety-first protocol used by university rocket teams and serious hobbyists.
What You'll Build
A DIN-rail enclosed pressure data acquisition system. You will connect four analog sensors to the Mega’s ADC, calibrate them for 0–700 kPa, and write a firmware sketch that reads all channels, logs time-stamped data to a microSD card, and renders live pressure curves on a 2.4-inch TFT display. A 4-channel relay module, driven by redundant safety logic with diodes, acts as a hard cut-off for the external pump, ensuring that a single sensor fault can still trigger an immediate shutdown.
What You'll Learn
- Configuring MPX5700 analog pressure transducers for precise hydrostatic range and linearity
- Implementing a multi-channel redundant safety interlock using relays, diodes, and polling loops
- Timing sensor reads with a DS3231 RTC and storing structured logs on a microSD using SPI
- Soldering noise-resistant analog front-ends on prototyping boards and housing them in a DIN rail enclosure

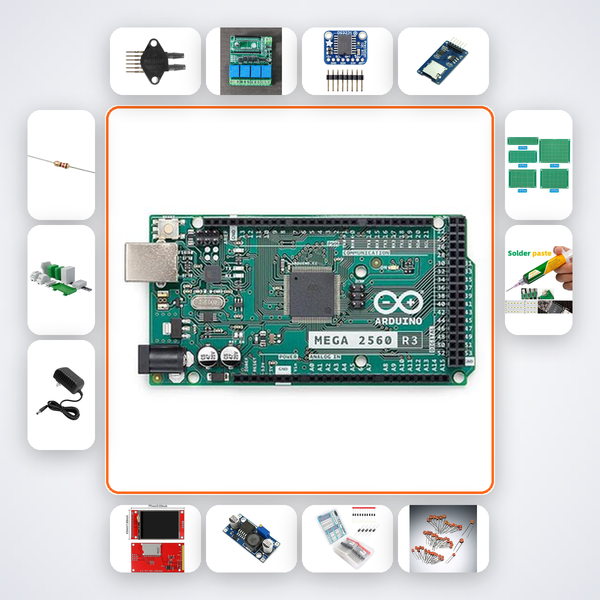

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| MPX5700 Pressure Sensor | 4 |
| 4-ch Relay Module | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 2.4in TFT ILI9341 | 1 |
| LM2596 Buck Converter | 1 |
| 1N4007 Diode | 5 |
| 100nF Caps | 15 |
| 10kΩ Resistors | 10 |
| DIN Rail Enclosure | 1 |
| 12V 5A PSU | 1 |
| PCB Prototype Board | 3 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Aerospace and mechanical B.Tech students building Smart India Hackathon pressure-testing modules, propulsion teams at IITs, NITs, or BITS Pilani qualifying student-built casings, and experienced amateur rocketeers who need a repeatable hydrostatic protocol rather than ad-hoc plumbing. Prior Arduino coding and basic soldering are assumed.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to open a chat with the project-specific AI companion, which knows every component, connection, and calibration step. Human engineer support is also available via WhatsApp within 24 hours.
Can I test real rocket motor casings with water?
Yes, the kit is designed for hydrostatic (water) proof-testing of metal or composite casings up to 700 kPa. Always follow your local safety norms and use proper shielding during tests.
What happens if a sensor fails during a test?
The safety interlock logic continuously compares all four channels. If any reading exceeds the programmed limit or if a sensor output becomes erratic, the relay cuts pump power within milliseconds, preventing over-pressurisation.
Do I need prior experience with Arduino Mega and SPI?
This is an advanced kit. You should be comfortable writing Arduino sketches, wiring SPI displays and SD modules, and soldering through-hole components. The AI companion provides complete code and schematics as a reference.
MPX5700 pressure transducers monitor four casing ports during hydrostatic test with Arduino safety interlock.
What's in this kit
- Arduino Mega 2560
- MPX5700 Pressure Sensor x4
- 4-ch Relay Module
- DS3231 RTC
- MicroSD Module
- 2.4in TFT ILI9341
- LM2596 Buck Converter
- 1N4007 Diode x5
- 100nF Caps x15
- 10kΩ Resistors x10
- DIN Rail Enclosure
- 12V 5A PSU
- PCB Prototype Board x3
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
