Satellite Attitude Determination System Kit with ESP32 + LED
Satellite Attitude Determination System Kit with ESP32 & OLED: Master Quaternion Data Logging at 200 Hz
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Recreate a satellite’s attitude determination system using an ESP32, ICM-20948 9DOF IMU, and the Madgwick filter. Log quaternion data at 200 Hz to an SD card with microsecond accuracy. Ideal for CubeSat ADCS prototypes, rocketry telemetry, or advanced sensor fusion research.
What You'll Build
You’ll build a self-contained attitude module that reads raw IMU data, runs the Madgwick AHRS algorithm, displays real-time Euler angles on an OLED, and timestamps quaternion logs to an SD card using the DS3231 RTC. The module runs on a rechargeable LiPo and fits inside a durable enclosure. You can later feed the CSV log into MATLAB or Python to plot attitude over time for satellite mission analysis.
What You'll Learn
- Implement the Madgwick AHRS filter on an ESP32 in C++ for sensor fusion at 200 Hz
- Interface the ICM-20948 9‑axis IMU over I²C, extracting raw accelerometer, gyroscope, and magnetometer data
- Design a high-speed data logging system using SPI for SD card writing and a DS3231 RTC for precise timestamping
- Integrate a small OLED display to visualize real-time quaternion and Euler angle outputs

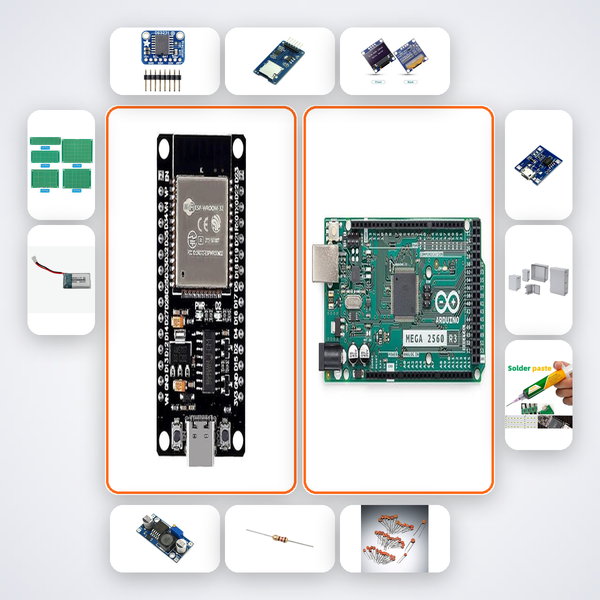

Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| ICM-20948 9DOF IMU | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 0.96in OLED | 1 |
| LM2596 Buck Converter | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Capacitors | 10 |
| PCB Prototype Board | 2 |
| 3.7V LiPo 1000mAh | 1 |
| TP4056 Module | 1 |
| Enclosure Box | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Researchers developing CubeSat ADCS, B.Tech ECE/EEE students creating final-year projects for Smart India Hackathon or ISRO challenges, and rocketry hobbyists needing high-speed IMU logging. If you require sensor fusion with research-grade timestamping, this kit fits your lab perfectly.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Our AI companion walks you through the circuit wiring, code deployment, and calibration steps. If you still need help, you can message us on WhatsApp — an electronics engineer will respond within a few hours.
Does the kit include
ICM-20948 9DOF IMU + magnetometer implements Madgwick AHRS filter. Quaternion attitude logged to SD at 200Hz.
What's in this kit
Choose your assembly option:
-
Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
-
Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
ICM-20948 9DOF IMU + magnetometer implements Madgwick AHRS filter. Quaternion attitude logged to SD at 200Hz.
What's in this kit
