SD Card Data Log to CSV Kit with Arduino Uno + DHT22
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
SD Card Data Log to CSV Kit with Arduino Uno + DHT22 — a beginner-level kit.
Arduino Data Logger Kit: Save Temperature & Light to CSV and Chart in Excel
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A spreadsheet-ready data logger: an Arduino Uno records temperature, humidity (DHT22) and light (two LDRs) every minute to microSD as a CSV file, timestamped by a DS3231. Pop the card into a computer and open it in any spreadsheet to plot charts.

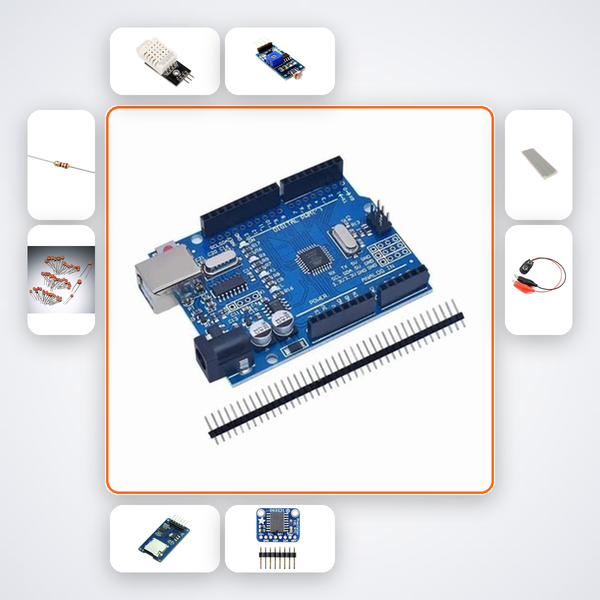

What's in the box
- Arduino Uno R3
- DHT22
- LDR × 2
- MicroSD Module
- DS3231 RTC
- 10kΩ Resistors × 10
- 4.7kΩ Resistors × 5
- 100nF Caps × 5
- 400-pt Breadboard
- M-M Wires × 25
- 9V Battery Snap
Power: 9V battery, not included. A microSD card is not included.
Skill level: Beginner (2-3 hours, no soldering).
Frequently asked questions
What is CSV?
Comma-separated values, a plain text table that every spreadsheet opens.
How long will it log?
For days on mains power, but a 9V battery runs out sooner.
Do I need to solder?
No.
Turn an Arduino Uno into a dedicated environmental recorder. The kit captures temperature and humidity from a DHT22, plus ambient light from two LDRs, tags every reading with a real-time clock timestamp, and writes the results as a tidy CSV file to a microSD card. Open the file in Excel or Google Sheets and plot multi‑series charts that reveal daily patterns — ideal for classroom science experiments, greenhouse monitoring, or simply learning how data acquisition works.
What You'll Build
A compact data logger that sits on a breadboard and runs off a 9 V battery. Once you load the code, the Arduino reads the sensors every minute and stores the values with date and time on the SD card. Remove the card, insert it into any computer, and you’ll see columns for Date, Time, Temperature, Humidity, Light (Sensor 1), and Light (Sensor 2). No extra software is needed — just open the CSV file and the data is ready for charting.
What You'll Learn
- Interface a DHT22 digital sensor and analog LDRs with an Arduino Uno
- Use the Arduino SD library to write CSV data to a microSD card
- Integrate a DS3231 real‑time clock for accurate timestamps on every record
- Plot multi‑variable data in Excel to spot trends and correlations
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| DHT22 | 1 |
| LDR | 2 |
| MicroSD Module | 1 |
| DS3231 RTC | 1 |
| 10kΩ Resistors | 10 |
| 4.7kΩ Resistors | 5 |
| 100nF Caps | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 25 |
| 9V Battery Snap | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested
DHT22 and LDR values logged every minute to SD card as CSV. Open in Excel to plot charts. What's in this kit
|
