Pool Skimmer Debris Alert Kit: Arduino Uno, IR Beam Sensor

SKU: CDN-KIT-3054-CL Brand: Compoden Category: Electronics > Security & Surveillance > Project Kits
Rs. 600.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Pool Skimmer Debris Alert Kit: Arduino Uno, IR Beam Sensor — a beginner-level kit.

Pool Skimmer Debris Alert Kit: Arduino Uno, IR Beam Sensor

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Introduction to IR emitter/receiver pairs

Kit at a glance

What you build: A pool skimmer alert: an IR beam across the skimmer opening is blocked when leaves and debris pile up, and an Arduino Uno sounds the buzzer and lights red LEDs to tell you the basket needs emptying.

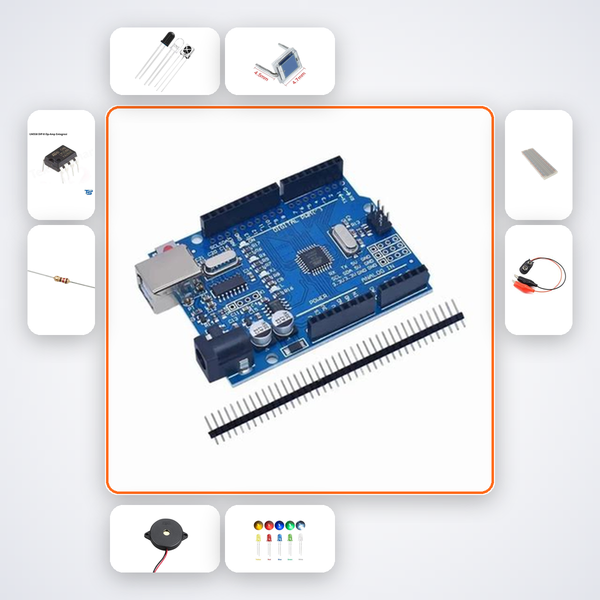

What's in the box

  • Arduino Uno R3
  • IR LED 940nm × 2
  • IR Photodiode × 2
  • Active Buzzer
  • 5mm Red LED × 3
  • LM358 Op-Amp
  • 10kΩ Resistors × 10
  • 1kΩ Resistors × 5
  • 220Ω Resistors × 5
  • 400-pt Breadboard
  • M-M Wires × 20
  • 9V Battery Snap

Power: 9V battery, not included.

Skill level: Intermediate (3-4 hours).

Frequently asked questions

Is it a pool safety alarm?

No. It only watches the skimmer; it doesn't detect people.

Is it waterproof?

No. Keep the electronics dry and away from the water.

This is a skimmer debris alert, not a pool safety alarm. It doesn't detect people in the water.

Keep your pool water crystal-clear without constant manual checks. This kit teaches you to assemble an optical beam break sensor that stands watch over your pool skimmer or sample tube. The moment floating debris or murky water disrupts the infrared beam, a bright red LED and loud active buzzer let you know it’s time for maintenance. Far simpler than a real pH meter, it introduces you to the core principle behind turbidity and color-based water quality sensors.

What You'll Build

You’ll build a working IR beam‑break detector module that can sit beside your pool’s filtration inlet or a small cuvette holder. Align two 940nm IR LEDs with two photodiodes across the water path; when the beam stays strong, the pool is clean. When leaves, algae, or high particle load cut the light, the Arduino instantly activates the buzzer and warning LEDs. The device runs on a 9V battery, so you can place it right where you need it.

What You'll Learn

  • How IR LEDs and photodiodes create a wireless sensor pair without any physical contact with water
  • Amplifying tiny photodiode signals using an LM358 op‑amp for reliable Arduino reading
  • Coding logic that compares light intensity to a threshold and triggers alarms
  • Real‑world prototyping skills on a 400‑point breadboard, preparing you for larger STEM projects

Kit Contents

Component Quantity
Arduino Uno R3 1
IR LED 940nm 2
IR Photodiode 2
Active Buzzer 1
5mm Red LED 3
LM358 Op-Amp 1
10kΩ Resistors 10
1kΩ Resistors 5
220Ω Resistors 5
400-pt Breadboard 1
M-M Wires 20
9V Battery Snap 1

Who This Kit Is For

CBSE students exploring sensor‑based projects, B.Tech ECE/EEE students preparing for mini‑project submissions, and ATL Tinkering Lab members who want a quick, functional optical alarm. Smart India Hackathon participants can adapt the IR beam concept for perimeter security or water turbidity monitors. The build is simple enough to complete with minimal guidance.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Can I use this kit to measure actual pool pH levels?

This kit is designed as an optical beam‑break alarm, not a precise pH meter. However, you can place a pH test strip in the light path and detect colour change intensity—turning it into a simple yes/no pH alert. The real learning is the IR sensor pair and op‑amp signal handling.

Will the circuit survive near a real pool outdoors?

The IR LEDs and photodiodes can be placed inside a waterproof housing (not included), and the Arduino can sit several metres away. Adult supervision is recommended if used near water, especially for builders in the younger age group.

How long does the 9V battery last during monitoring?

With continuous IR beam operation and occasional buzzer alerts, a standard alkaline 9V battery powers the setup for roughly 8 hours. For longer run‑time, you can add a rechargeable power bank via the Arduino’s USB port.

Is any prior coding knowledge required?

No. The AI companion provides the complete Arduino code with line‑by‑line explanation. You simply upload it and adjust a threshold value if needed. The focus is on understanding how the sensor works, not writing code from scratch.
