Thermal Camera Imaging Probe Kit with Arduino Uno + Sensor
Build a Handheld Thermal Imaging Probe to Hunt Down Electronics Hot Spots with Arduino & AMG8833
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

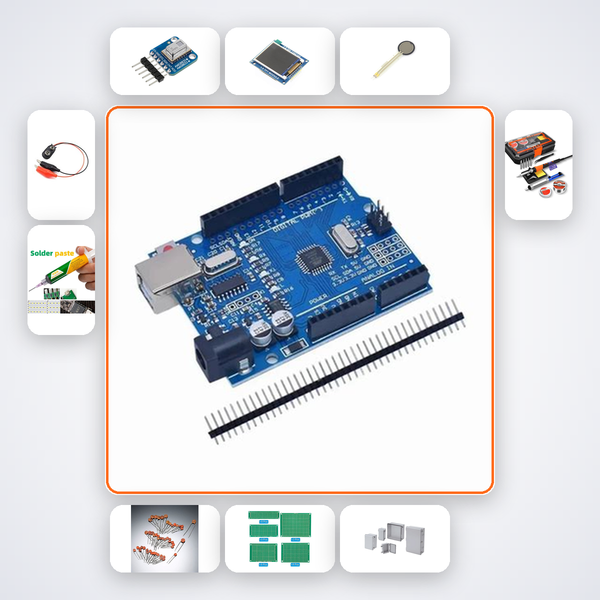

Overheating components, shorted PCB traces, or failing power supplies often hide behind tiny packages. This kit transforms an Arduino Uno and an AMG8833 8x8 thermal sensor into a portable probe that paints a live temperature map on a 1.8-inch TFT display. Designed for electronics troubleshooters, makers, and B.Tech project labs, the probe lets you scan a board from a few centimeters away and instantly see which capacitor, regulator, or IC is running hotter than expected—no more wild guessing with a single-point infrared gun.
What You'll Build
By the end of the build, you will hold a battery-powered enclosure with a slim probe tip housing the AMG8833 sensor. A ribbon cable connects to the Arduino and TFT display mounted in the box. Press the trigger button, sweep the probe across a circuit board, and watch the 8x8 pixel heat map refresh with color gradients—blue for cool, yellow for warm, red for hot. The spot temperature readout helps you pin down exact hot zones without needing a laptop.
What You'll Learn
- Read a 64-pixel thermal array over I2C and transform raw readings into Celsius values
- Drive an SPI TFT display with the ST7735 library to render color-coded heat maps
- Solder SMD resistors and capacitors onto a compact PCB prototype board
- Calibrate thermal thresholds and design a responsive UI for battery-powered field use
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| AMG8833 Thermal Sensor (8x8 IR array) | 1 |
| 1.8-inch TFT ST7735 Display | 1 |
| 4.7kΩ Resistor | 5 |
| 100nF Ceramic Capacitor | 5 |
| PCB Prototype Board (70mm x 50mm) | 2 |
| Plastic Enclosure Box | 1 |
| 9V Battery Snap Connector | 1 |
| 30W Soldering Iron | 1 |
| Solder Wire (15g) | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
CBSE Class 11–12 students building physics or electronics projects will find the thermal mapping principle immediately applicable. B.Tech ECE and EEE students can turn this into a compact lab instrument for fault diagnosis, ready for internal review. The kit fits Smart India Hackathon prototypes, ATL Tinkering Lab innovation walls, and the curiosity of IIT, NIT, and VIT freshers who want a working tool that goes beyond a simple LED blinker.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the AI companion from your phone, describe the symptom—it knows every solder joint and code upload step. WhatsApp help is included if you need a human touch.
Can this thermal probe measure human body temperature for medical use?
The AMG8833 reads surface temperature with ±2.5°C accuracy; it is not a medical device. It excellently spots overheating ICs, resistors, and MOSFETs on PCBs.
Do I need prior soldering experience?
Basic soldering (tinning pads, avoiding bridges) is helpful. The AI companion shows close-up photos of each joint—intermediate builders will solder all 10 resistors and capacitors with confidence.
What if the TFT display stays blank after uploading code?
Check the SPI wiring against the color-coded diagram in the companion, verify the contrast potentiometer, and confirm the proper library version. WhatsApp support resolves typical issues in minutes.
AMG8833 8x8 thermal camera on a probe handle shows surface temperature map on TFT. Good for finding hot spots.
