Arduino Ultrasonic Ruler Kit – Build a Digital Distance Measurer with LCD

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Turn an Arduino Uno and an ultrasonic sensor into a real‑time digital ruler that measures distances without ever touching an object. Whether you're checking the width of a table or the depth of a cardboard box, this project gives you a portable tool that shows readings in both centimeters and inches on a clear 16×2 LCD screen. It’s a complete beginner’s journey into sensor‑based measurement, perfect for young makers exploring how electronics interact with the physical world.

What You'll Build

You’ll assemble a fully functional ultrasonic distance meter on a breadboard. The HC‑SR04 sensor fires ultrasonic pulses, captures the echo, and the Arduino calculates the distance. The result appears instantly on the I2C LCD – you choose whether to display in cm or inches with a single code tweak. By the end of the build, you’ll have a handheld device that you can take around the house to measure objects, great for show‑and‑tell or a school STEM fair.

What You'll Learn

• Connect and program an HC‑SR04 ultrasonic sensor to measure distance using the echo time principle
• Interface a 16×2 I2C LCD module with Arduino Uno and display real‑time numeric data
• Write Arduino code to convert microsecond timings into centimeters and inches
• Troubleshoot a sensor circuit on a breadboard, building confidence in hardware prototyping

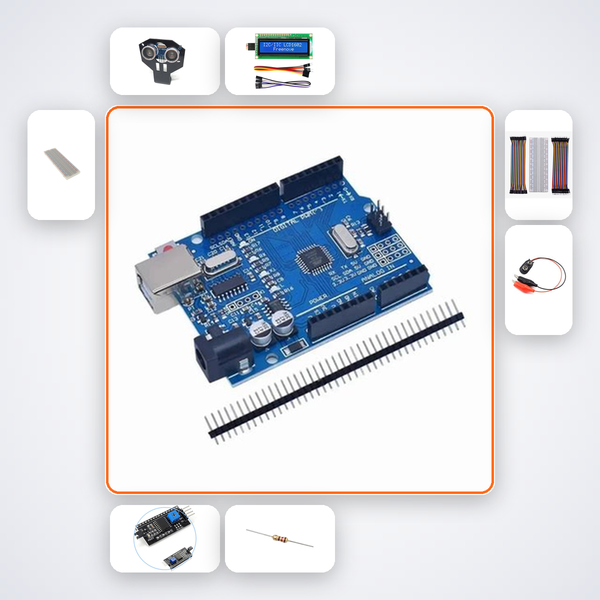

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This ultrasonic ruler kit is tailor‑made for CBSE and ICSE students from Class 5 to 10 who need a compelling science project that demonstrates sensor technology and data display. It’s also a top pick for ATL Tinkering Lab participants exploring sensor‑driven innovation, and for young hobbyists aged 5–15 who want to build a real gadget with their own hands. Even B.Tech ECE freshmen at NITs, VIT, or BITS will find it a handy first‑semester introduction to embedded systems.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
