Water Level Visual Gauge Kit with Arduino Uno — Real-Time On-Screen Tank Monitoring

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Ever wondered how to check your water tank level without climbing a ladder? This kit answers that question by turning an ultrasonic sensor into a visual gauge that displays the exact percentage inside a tank — all on a crisp OLED screen. You’ll build the whole system from scratch with an Arduino Uno, learning how to map real-world measurements to on-screen graphics. It’s a hands-on way to understand sensor data, mapping, and visual feedback for monitoring tanks, aquariums, or school science models.

What You’ll Build

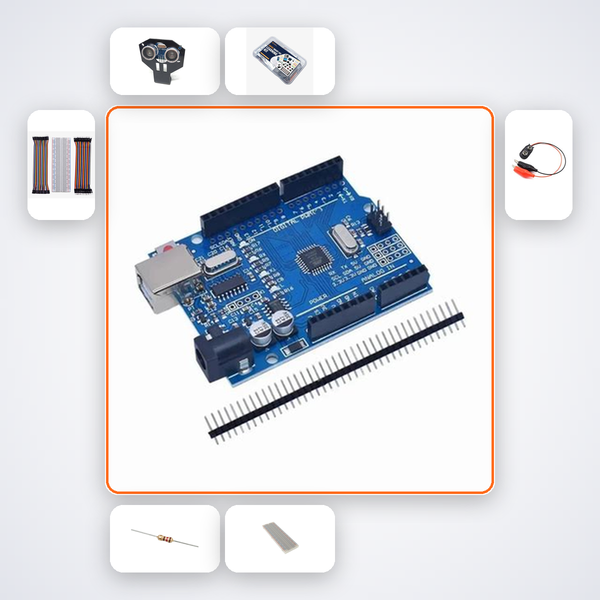

You’ll wire an HC-SR04 ultrasonic sensor and a 0.96-inch I2C OLED display to an Arduino Uno, then upload code that measures distance and maps it to tank depth. The resulting on-screen gauge fills up in green for safe levels, shifts to yellow when it’s half‑empty, and turns red when almost empty — giving instant, at-a-glance status. The prototype is a complete, working tool you can demonstrate in ATL labs, CBSE fairs, or at home.

What You’ll Learn

• Interface an HC-SR04 ultrasonic sensor and read distance measurements
• Convert distance readings into tank fill percentage using a mapping formula
• Program the SSD1306 OLED to render a dynamic fill-bar and percentage text
• Implement colour thresholds (green, yellow, red) to indicate water level status

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Designed for CBSE Class 9–12 students and B.Tech first-year ECE/EEE learners, this kit also fits ATL Tinkering Lab experiments and Smart India Hackathon prototypes. Children aged 10+ with basic Arduino familiarity can build it with the AI companion’s guidance under parent supervision.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
