Weather Forecast Pressure Pro Kit with Arduino Nano + MPU6050
Weather Forecast Pressure Pro Kit: Build a PID-Controlled Rocket Simulation with Arduino Nano & MPU6050
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
What if you could predict altitude pressure changes and instantly respond with a thrust vector control (TVC) gimbal and parachute deployment? This kit lets you build a complete weather-responsive rocketry simulation—perfect for students exploring control systems, aerospace, or competition-level rocket projects.
What You'll Build
You will assemble a 2-axis servo gimbal that tilts based on real-time BMP280 pressure and MPU6050 orientation data, executing a PID control loop to simulate rocket engine thrust vectoring. The system also triggers dual relay-driven parachute ejection events at two preset altitude thresholds, all logged to a MicroSD card for post-flight analysis.
What You'll Learn
- Implement a PID control algorithm on Arduino Nano using sensor feedback
- Fuse MPU6050 accelerometer/gyroscope and BMP280 barometer data for altitude-aware attitude control
- Calibrate and drive MG90S servos for precise 2-axis gimbal movement
- Design dual-event ejection logic with relay modules for parachute deployment

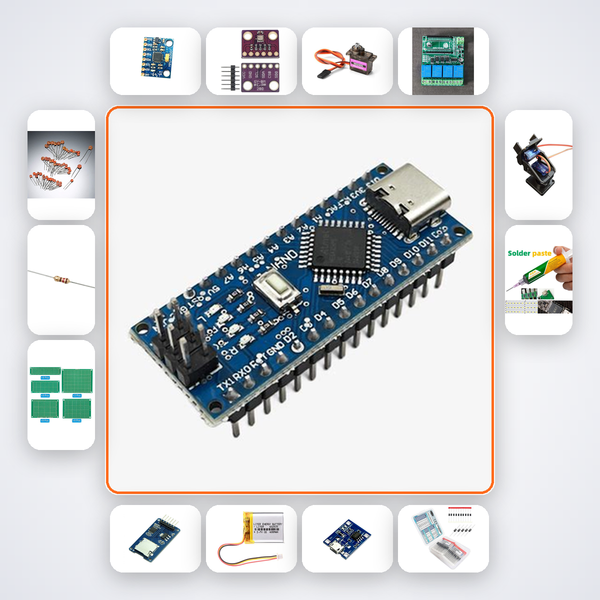

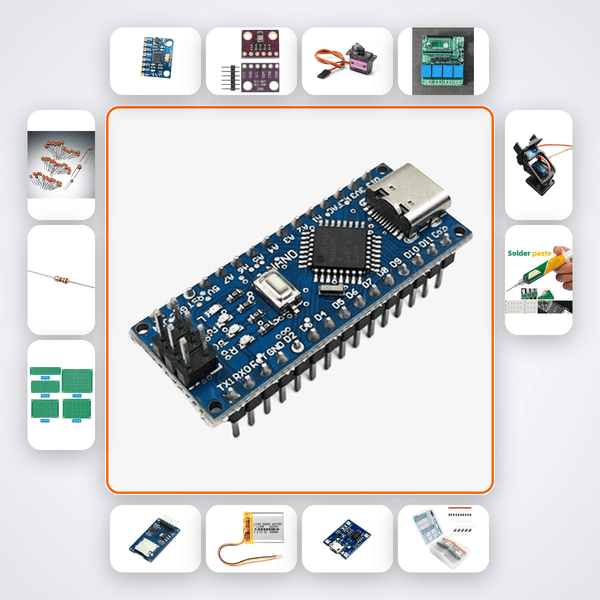

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 1 |
| MPU6050 | 1 |
| BMP280 | 1 |
| MG90S Servo | 2 |
| 5V Relay Module | 2 |
| MicroSD Module | 1 |
| 3.7V LiPo 500mAh | 1 |
| TP4056 Module | 1 |
| 1N4007 Diode | 5 |
| 100nF Caps | 10 |
| 4.7kΩ Resistors | 5 |
| PCB Prototype Board | 3 |
| 2-Axis Gimbal | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit is ideal for B.Tech ECE/EEE students working on control systems or rocketry projects, participants in Smart India Hackathon building autonomous flight systems, and rocketry club members at IITs, NITs, VIT, or BITS Pilani. It also suits ATL tinkering labs mentoring advanced college-level projects.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the AI companion using the QR code; it will recognize your exact step and offer debugging help. You can also message us on WhatsApp for real‑time guidance from a build expert.
Can I use this kit to control an actual model rocket?
Yes, the TVC gimbal design, relay triggers for parachute ejection, and pressure-based altitude sensing are suitable for small-scale rockets up to 500g. Always follow your local rocketry safety regulations before flight.
Is the PID code pre-written, or do I need to develop it?
The AI companion provides a fully functional Arduino sketch with PID values tuned for this hardware, complete with comments that let you modify parameters for your own experiments.
What additional accessories do I need to start?
You only need a USB cable (standard Micro-USB) for programming the Nano, a multimeter for testing, and optionally a power bank for portable field runs. All connectors and the soldering iron are included.
Weather — MPU6050 + BMP280 + PID drives 2-axis TVC servo gimbal with dual deployment parachute ejection on Arduino Nano.
What's in this kit
- Arduino Nano
- MPU6050
- BMP280
- MG90S Servo x2
- 5V Relay Module x2
- MicroSD Module
- 3.7V LiPo 500mAh
- TP4056 Module
- 1N4007 Diode x5
- 100nF Caps x10
- 4.7kΩ Resistors x5
- PCB Prototype Board x3
- 2-Axis Gimbal
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
