Build a Robot Arm That Humans Trust: Raspberry Pi 5 Legible Motion QC Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

In a manufacturing quality control station, a robotic arm that moves unpredictably breeds anxiety and mistrust. This advanced kit guides you through building a 4‑DOF robotic arm with a Pi Camera Module 3 on a Raspberry Pi 5, then programming it to generate legible motion — trajectories that make its future intent readable to anyone nearby. By the end, you’ll run experiments with human participants, capture behavioural responses, and compute a trust score that quantifies how “human‑readable” your robot is.

What You'll Build

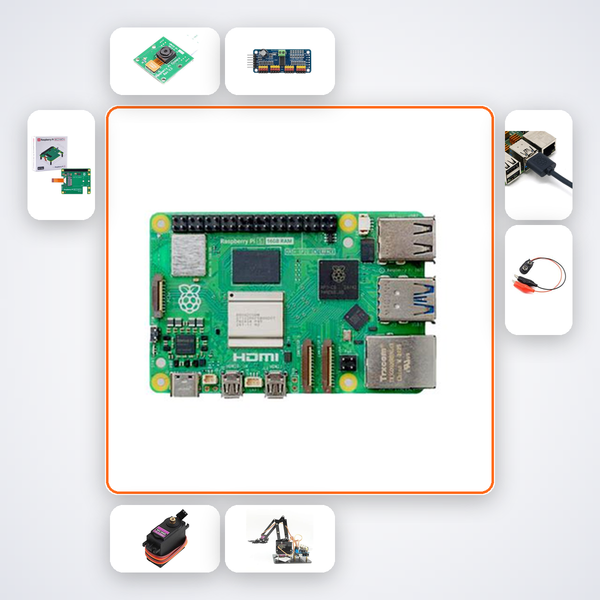

You’ll assemble a complete robot arm kit driven by four MG996R servos and a PCA9685 driver, all mounted on the Raspberry Pi 5. The Pi Camera Module 3 streams a live feed for object detection, while the NVMe SSD (512 GB) connected through the Pi 5 M.2 HAT+ stores image logs and trust data. The core software implements cubic‑spline trajectory planning, velocity profile shaping, and a visualisation dashboard. When the arm moves, it points its end‑effector toward the target well before grasping, decelerates smoothly, and avoids sudden jerks — allowing human observers to predict its next action confidently.

What You'll Learn

• Design smooth, predictable motion paths using cubic splines, velocity scaling, and the PCA9685 servo driver library on Linux.
• Implement an object‑detection and pose‑estimation pipeline with OpenCV and the Pi Camera Module 3, feeding target coordinates directly to the arm controller.
• Build a human‑subject experiment loop: button‑press interfaces, reaction‑time logging, and a custom Python dashboard that computes a per‑subject trust score.
• Calibrate a 4‑DOF servo arm for reproducible pick‑and‑place, learning how mechanical zero offsets and servo dead‑bands affect real‑world repeatability.

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit targets undergraduate and postgraduate engineering students from India’s ECE, EEE, and Robotics branches who need a rigorous human‑robot interaction project. It is equally suited for Smart India Hackathon teams building Industry 4.0 proof‑of‑concepts, and for research scholars at IITs, NITs, VIT, and BITS Pilani who want a reproducible, low‑cost platform to study legible motion and trust metrics.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
