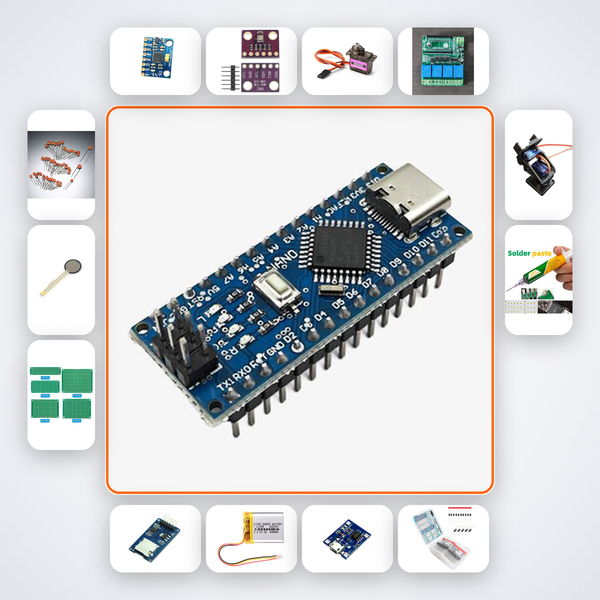

Simulate Rocket Telemetry, Thrust Vector Control, and Recovery with the Arduino Nano & MPU6050 Advanced Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

This kit empowers you to build a complete rocket telemetry and recovery simulation system - the same core electronics used in model rockets and high-altitude drones. You'll integrate an IMU and barometric altimeter to track orientation and altitude, control a 2-axis thrust vectoring servo gimbal via PID, and trigger dual parachute ejection at precise altitude thresholds, logging every data point to a microSD card for post-flight analysis.

What You'll Build

A fully soldered, standalone simulation platform that senses orientation, altitude, and atmospheric pressure, then commands two servos for thrust vector control and two relays for parachute deployment. The system logs all sensor data in real-time to a microSD, letting you replay a mission and refine your control algorithms. The included 2-axis gimbal demonstrates roll and pitch control, while the relay logic mimics dual-event ejection like drogues and main chutes.

What You'll Learn

• Calibrating and fusing MPU6050 gyroscope and accelerometer data using the Madgwick filter
• Reading high-resolution altitude from the BMP280 barometric pressure sensor
• Tuning a PID controller to stabilize a 2-axis servo gimbal in real-time
• Implementing dual-deployment logic using relay triggers at pre-set altitude thresholds

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Designed for advanced projects at IIT, NIT, VIT, BITS Pilani, and beyond, this kit fits B.Tech ECE/EEE and M.Tech aerospace specializations, Smart India Hackathon hardware challenges, and ATL tinkering mentors building rocketry demonstrations. If you're a hobbyist preparing for TARC-style competitions or an engineering student building a flight computer from the inside out, this kit gives you every component in one box.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
