VS1053 Audio Codec Module for Arduino (MP3 Playback, Ogg/ADPCM Recording)
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

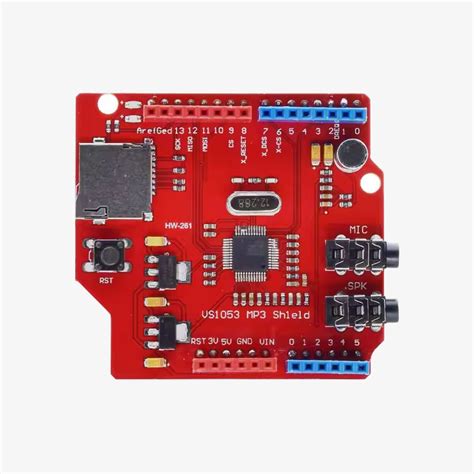

VS1053 Audio Codec Development Board Module for Arduino Uno (MP3 Playback, Ogg/ADPCM Recording)
This module is a compact audio processing board based on the VS1053 IC, providing MP3, WAV and OGG playback plus IMA ADPCM, PCM and Ogg Vorbis (plugin) recording for Arduino and similar microcontrollers. It enables direct voice and audio recording to microSD without heavy CPU load. The onboard SPI interface and integrated codec make it ideal for adding high-quality sound to embedded projects.
Key Specifications
| Specification | Value |
|---|---|
| IC | VS1053B |
| Audio Formats | Play: MP3, WAV, OGG. Record: IMA ADPCM / PCM WAV, Ogg Vorbis (plugin). No MP3 recording. |
| Recording Storage | microSD card slot (up to 32GB, FAT32) |
| Interface | SPI (MISO, MOSI, SCK, CS) |
| Power | 5V DC (onboard 3.3V LDO) |
| Audio I/O | Onboard electret mic, 3.5mm MIC jack, 3.5mm SPK output jack (headphone level) |
What You Can Build With This
- Portable voice recorder with timestamp logging
- Standalone MP3 playlist player from microSD
- Sound effects board for cosplay props or animatronics
- Real-time audio alert system for IoT sensor thresholds
Compatibility
The module works directly with Arduino Uno, Nano, and Mega using standard SPI pins. It requires a 5V supply but communicates at 3.3V logic—the onboard level shifters manage voltage translation. Compatible with the Adafruit VS1053 library and Arduino IDE. It also functions with ESP8266/ESP32 boards with minor wiring adjustments.
Wiring Notes
Connect VCC to 5V and GND to ground. Wire MISO, MOSI, SCK to Arduino pins 12, 11, 13 respectively; CS to a digital pin like 10. Insert a FAT32-formatted microSD card. The module draws up to 100mA during recording; use a stable USB or external 5V supply to avoid voltage droops.
Is this compatible with Arduino Uno?
Yes, it works with standard SPI and the VS1053 plugin. You can use the Adafruit breakout library for straightforward recording and playback examples.
Does it need an external microphone?
No, the board has an onboard electret microphone for recording. You can also connect an external mic via the 3.5mm MIC jack.
Can it record directly to microSD?
Yes, it can record to a microSD card without a computer, as IMA ADPCM or PCM WAV, or Ogg Vorbis with the VLSI plugin. The VS1053 does not encode MP3.
Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
