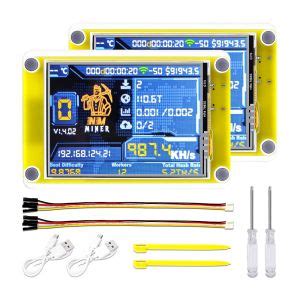

Elecrow 2.4inch ESP32 Solo Miner LCD Display

The Elecrow 2.4inch ESP32 Solo Miner LCD Display combines a vibrant TFT screen with an ESP32-Solo microcontroller to create a dedicated monitor for crypto mining rigs. It displays real-time hashrate, temperature, and pool status over WiFi, eliminating the need for a separate PC. A resistive touch layer allows direct on-screen control and menu navigation.

Key Specifications

Specification Value
Display Size 2.4 inch TFT LCD
Resolution 320x240 pixels
Touch Screen Resistive touch
Microcontroller ESP32-Solo (single-core)
Wireless WiFi 802.11b/g/n, Bluetooth 4.2 BLE
Interface SPI for display, USB-C for power/programming

What You Can Build With This

Compatibility

This board works with Arduino IDE, MicroPython, and ESP-IDF. It connects to any standard 5V USB power source and pairs effortlessly with mining software that exposes HTTP APIs. The display uses the ILI9341 driver, widely supported in TFT_eSPI and LovyanGFX libraries.

Wiring Notes

Just plug in a USB-C cable for power and code upload. The LCD and touch controller share the SPI bus on dedicated internal pins, so no jumper wires are needed. If you need extra GPIOs for sensors or buttons, the breakout header provides 3.3V-tolerant pins directly from the ESP32.

Is this compatible with Arduino IDE?

Yes, fully. Add the ESP32 board support in Arduino IDE and select “ESP32 Dev Module” as the board. The TFT and touch libraries install directly from the Library Manager.

Can I monitor multiple mining rigs on one display?

It can show data from one rig at a time via a direct API call, but you can code it to cycle through multiple miners by connecting to a local dashboard or by switching IP addresses.

Does it come with pre-loaded firmware?

It ships with a simple demo that cycles colors and reads touch input. To use it as a mining monitor, you’ll need to flash custom firmware using the USB-C port.

Free Setup Handoff Document Included

Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.

Pinout, specs and project ideas on Soldr →

Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
