ESP32 Drone GPS Navigator Kit: Live MQTT Dashboard & Map Plotting
ESP32 Drone GPS Navigator Kit: Track & Plot Live GPS Data with Node-RED
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine equipping a drone with a GPS module that streams live coordinates over WiFi and paints its path on a dynamic map dashboard. This kit transforms that concept into a working prototype using the ESP32 and Node-RED, giving you a powerful telemetry backbone for advanced UAV experiments, hackathons, or final-year engineering projects.
What You'll Build
A complete drone GPS tracking system: the NEO-6M module sends latitude, longitude, and altitude to the ESP32, which publishes them via MQTT. Node-RED subscribes to the data, parses the JSON payload, and plots a real-time position marker on an interactive map. An OLED displays live status, an RTC timestamps each sample, and the LiPo battery keeps the tracker airborne-ready. The result is a dashboard that visualizes your drone's flight path as it moves.
What You'll Learn
- Interface the NEO-6M GPS with ESP32 to decode raw satellite data and extract positional strings.
- Use MQTT protocol to stream live coordinates to a local broker-master pub/sub architecture for IoT.
- Build a Node-RED flow that ingests telemetry, parses it, and updates a live map dashboard with no-code logic.
- Integrate a DS3231 RTC module to timestamp every GPS fix for accurate flight path reconstruction.
Kit Contents
| Component | Quantity |
|---|---|

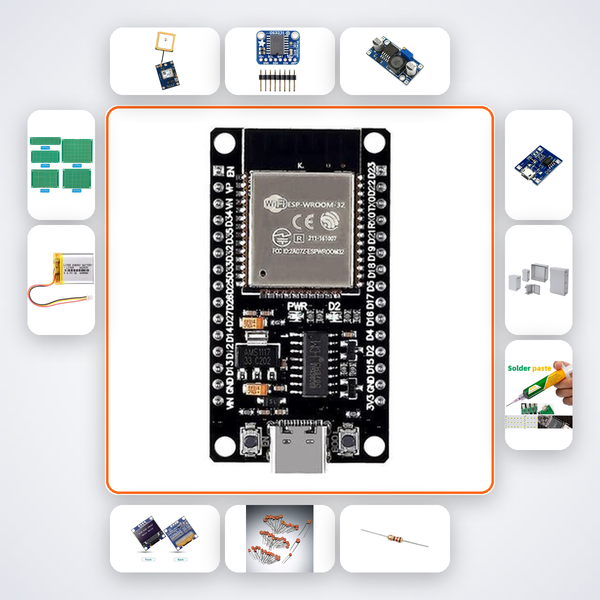

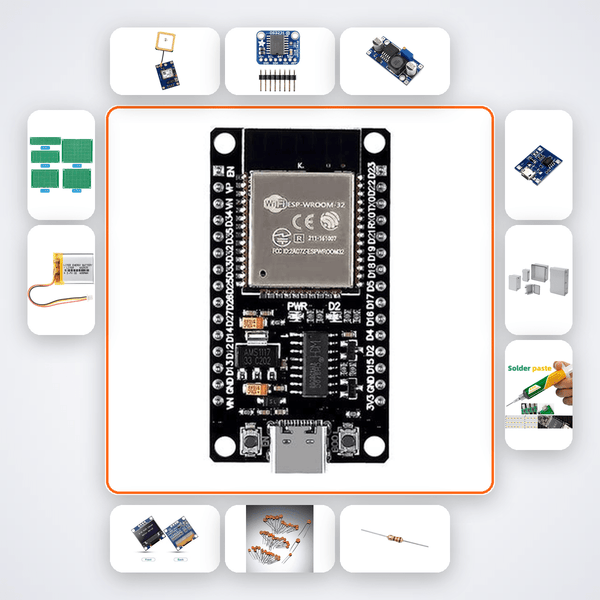

| ESP32 Dev Board | 1 |
| NEO-6M GPS | 1 |
| DS3231 RTC | 1 |
| LM2596 Buck Converter | 1 |
| 0.96in OLED | 1 |
| 100nF Caps | 10 |
| 4.7k? Resistors | 5 |
| PCB Prototype Board | 2 |
| 3.7V LiPo 2000mAh | 1 |
| TP4056 Module | 1 |
| Enclosure Box | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit targets B.Tech ECE, EEE, and CSE students building GPS-enabled drone or IoT projects for final-year submissions, Smart India Hackathon, or personal UAV platforms. It's also ideal for advanced ATL Tinkering Labs and competition teams at NITs, VIT, BITS Pilani, and IITs who need a reliable, pre-tested telemetry backbone without the hassle of sourcing and debugging individual modules.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to launch the AI companion with guidance tuned for this exact kit, including wiring diagrams, code snippets, and debugging tips. You can also reach us on WhatsApp for human support.
Does this kit include drone hardware?
No, this kit provides the GPS telemetry electronics; you'll need your own drone frame, motors, and flight controller. The ESP32 acts as a standalone GPS tracker that can be mounted on any drone or used in ground-based tracking experiments.
Can I view the GPS map remotely over the internet?
The Node-RED dashboard runs on your local network by default, but you can extend it with port forwarding or switch to a cloud MQTT broker like HiveMQ. The AI companion includes instructions for both options.
Is soldering required?
Yes, some connections onto the prototype board need soldering, but a soldering iron and solder wire are included. The companion provides clear soldering tips and a point-to-point wiring checklist.
Drone - NEO-6M GPS on ESP32 publishes coordinates over MQTT. Node-RED parses and plots live map on dashboard.
What's in this kit
Choose your assembly option:
- Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
