ESP32 LoRa Baby Monitor Kit - IoT & Chirpstack Project
LoRaWAN & Chirpstack Integration Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
From first-time parents to engineering capstone teams, keeping a nursery comfortable is a universal concern. In this project you create a battery-powered sensor node that measures temperature, humidity, and barometric pressure beside the crib, then transmits encrypted data over kilometres to your own LoRaWAN server. The RA-02 LoRa module on an ESP32 joins a Chirpstack server using Over-The-Air Activation (OTAA), and every reading is automatically decoded and persisted in a database - no cloud subscription needed.
What You'll Build
A wireless infant room monitor sealed inside a waterproof enclosure that talks to your local network. The ESP32 wakes periodically, reads DHT22 and BMP280 sensors, formats a compact binary payload, and sends it to Chirpstack. There, the payload is decoded and stored in a PostgreSQL database, giving you a full environmental history viewable from any device on the network. The build teaches you how to structure a production-grade LoRaWAN device, from sleep scheduling to OTAA key management.
What You'll Learn
- Provisioning a Chirpstack LoRaWAN server and adding a device via OTAA
- Writing low-power ESP32 firmware with deep-sleep wake-ups triggered by sensor events
- Encoding temperature, humidity, and pressure into binary payloads and decoding them in Chirpstack's JavaScript codec
- Assembling and soldering a robust prototype on a dual-board PCB, including battery management and RF shielding

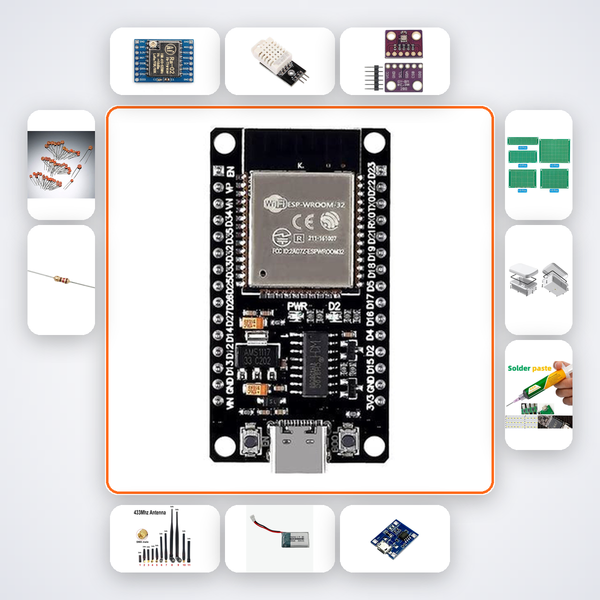

Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| RA-02 LoRa | 1 |
| DHT22 | 1 |
| BMP280 | 1 |
| 433MHz Antenna | 1 |
| 3.7V LiPo 1000mAh | 1 |
| TP4056 Module | 1 |
| 100nF Caps | 10 |
| 4.7k? Resistors | 5 |
| PCB Prototype Board | 2 |
| Waterproof Enclosure | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech ECE/EEE students building an IoT-based neonatal care project, especially final-year teams or Smart India Hackathon participants. IIT, NIT, VIT, and BITS makers who want a real-world LoRaWAN system they can showcase. Also for embedded developers who learn best by constructing a complete, deployable sensor node rather than just following code snippets.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code inside the box to launch the AI companion; it covers wiring, firmware, and Chirpstack configuration in sequence. If you need human input, our WhatsApp support line connects you to an engineer within hours.
Do I need a Chirpstack server, or is one included?
The kit provides all hardware. You run the open-source Chirpstack software on your own laptop, Raspberry Pi, or VPS - the AI companion includes a one-click setup script and detailed guidance.
Can I reuse the components for other projects later?
Absolutely. After you master the monitor, the ESP32, RA-02 LoRa, and sensors can be repurposed for precision agriculture, asset tracking, or any LoRaWAN application you design.
Will I need soldering experience?
The kit includes a soldering iron and solder, because you'll assemble the circuit on prototype PCB. If you're new to soldering, the AI guide provides a beginner-friendly video walkthrough.
Infant Care - RA-02 LoRa on ESP32 joins a Chirpstack LoRaWAN server using OTAA. Sensor data decoded and stored in DB.
What's in this kit
Choose your assembly option:
- Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
