Activity Level LED Band Kit with Arduino Nano + LED

SKU: CDN-KIT-0707-CL Brand: Compoden Category: Electronics > Wearables & Health > Project Kits
Rs. 660.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Activity Level LED Band Kit with Arduino Nano + LED — a beginner-level kit.

Build a Colour-Changing Activity Band with Arduino Nano & ADXL345 Accelerometer

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Wearable Movement Detection

Wear a band that glows green when you’re walking, red when you’re sedentary, and blue when running — all built by your own hands. This kit uses the ADXL345 accelerometer to read motion and an Arduino Nano to control an RGB LED, creating a simple health tracker on a breadboard. You’ll understand how wearable gadgets classify activity in real time.

What You'll Build

A breadboard-based activity band that classifies your movements in real-time. The RGB LED changes colour based on the intensity of motion, turning red for stillness, green for walking, and blue for high-acceleration running. You’ll see your activity level at a glance, learning how wearable health tech works from the inside.

What You'll Learn

  • Reading accelerometer data via I2C communication
  • Programming conditional logic to classify motion types
  • Driving RGB LEDs with PWM to create custom colours
  • Integrating sensors and actuators on a breadboard prototype

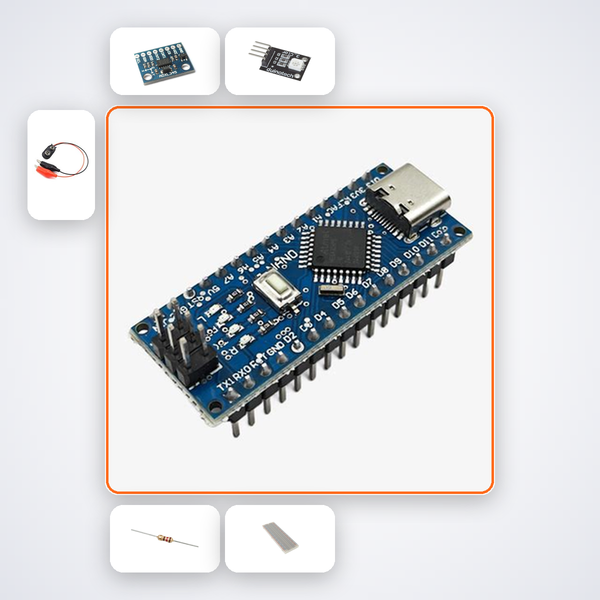

Kit Contents

Component Quantity
Arduino Nano x1
ADXL345 Accelerometer x1
RGB LED x2
220Ω Resistors x10
4.7kΩ Resistors x5
400-pt Breadboard x1
M-M Wires x20
9V Battery Snap x1

Who This Kit Is For

Designed for students pursuing CBSE or ICSE electronics, this kit fits perfectly into ATL Tinkering Lab sessions and school science exhibitions. First-year B.Tech ECE students at institutions like VIT, NIT, or BITS will also find it a gentle introduction to wearable sensor systems. Anyone curious about how fitness bands work can build a working prototype.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code on the box to access your AI build companion trained on this exact project. You can also reach our team over WhatsApp for personalised help.

Can I wear this band on my wrist?

The activity band is a breadboard prototype, not a finished wearable. Once you’ve mastered the circuit, you can transfer it to a flexible band and battery pack for a real wearable — the kit teaches the core electronics.

How does the LED colour change with movement?

The ADXL345 continuously measures acceleration. The Arduino Nano computes the magnitude and uses thresholds to decide if you’re stationary, walking, or running, then sets the RGB LED to red, green, or blue accordingly. You’ll code this logic yourself.

Can I use this kit for a school science exhibition?

Absolutely. The colour-changing feedback makes it an engaging demonstration of health monitoring. Schools often use this kit to explain accelerometer principles at CBSE/ICSE exhibitions and in ATL labs.

ADXL345 classifies movement as sedentary, walking or running. RGB LED shows activity level in colour.
