20-Second Hand Washing Timer Kit with Arduino Nano + IR Proximity Sensor

SKU: CDN-KIT-0778-CL Brand: Compoden Category: Electronics > Wearables & Health > Project Kits
Rs. 460.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

20-Second Hand Washing Timer Kit with Arduino Nano + IR Proximity Sensor — a beginner-level kit.

Build a Melody-Playing 20-Second Timer with Arduino Nano and IR Sensor

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 1-2 hrs Skill: Arduino programming and sensor integration

Hand washing guidance often says 20 seconds, and people often rush it. This kit lets you build a compact timer that starts when a soap dispenser's IR sensor detects a hand, playing a cheerful melody for exactly 20 seconds until hands are clean. Perfect for homes, schools, and health-awareness projects that teach hygiene through hands-on electronics.

What You'll Build

A battery-powered timer module that can be placed next to any standard soap dispenser. The IR proximity sensor detects a hand reaching for soap and triggers the Arduino Nano to light two green LEDs and play a melody through a passive buzzer for 20 seconds. You will wire the circuit on a breadboard, upload the provided code, and mount the sensor near the dispenser nozzle. The build fits easily into a small cardboard or 3D-printed enclosure you can customize.

What You'll Learn

  • Wiring an IR proximity sensor and reading its digital output
  • Programming an Arduino Nano to run a timed sequence and generate tones
  • Using a passive buzzer to play musical notes and melodies
  • Prototyping on a breadboard and powering a circuit with a 9V battery

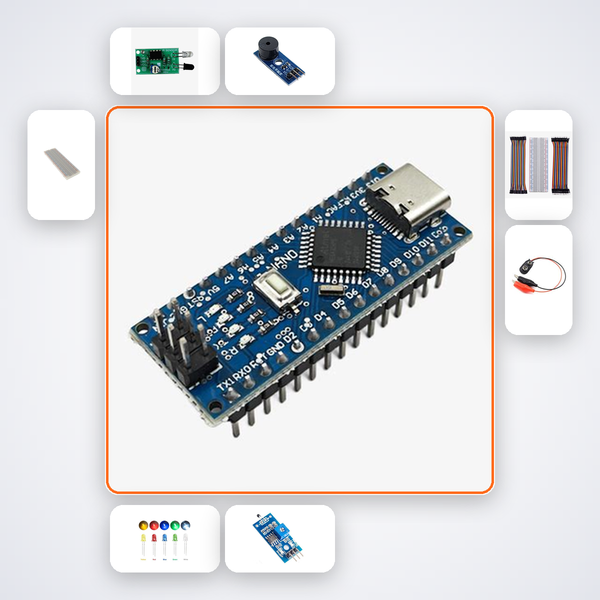

Kit Contents

Component Quantity
Arduino Nano 1
IR Proximity Sensor 1
Passive Buzzer 1
5mm Green LED 2
10kΩ Resistor 5
400-pt Breadboard 1
Male-to-Male Jumper Wires 15
9V Battery Snap 1

Who This Kit Is For

This kit is ideal for CBSE students working on hygiene and health projects, ATL Tinkering Lab members exploring sensor-based automation, and B.Tech ECE/EEE first-year students looking for a quick Arduino project. It's also a fun way to combine electronics with a daily routine.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Open the AI build companion with the QR code on the box; it will walk you through each step with troubleshooting tips. You can also message us on WhatsApp for direct help.

Can I use this kit for a school science exhibition?

Yes, the hand wash timer is a popular hygiene-awareness project for CBSE and ICSE exhibitions. It demonstrates real-world sensor use and coding, and the melody adds an engaging touch.

Will this work with any soap dispenser?

The IR proximity sensor is designed to detect a hand within a few centimeters, so it

20-second countdown with melody plays when soap dispenser IR triggered to ensure proper hand washing.
