Respiration Rate Monitor Kit with Arduino Nano + LED

SKU: CDN-KIT-0713-CL Brand: Compoden Category: Electronics > Wearables & Health > Project Kits
Rs. 1,590.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Respiration Rate Monitor Kit with Arduino Nano + LED — an intermediate-level kit.

Respiration Rate Monitor Kit with Arduino Nano + OLED: Wearable Breathing Tracker

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Intermediate Build Time: 3-4 hrs Skill: Respiration Signal Processing & OLED Visualization

Kit at a glance

What you build: A chest-strap breathing monitor: two FSR 402 force sensors under an elastic strap pick up each breath, and an Arduino Nano counts breaths per minute and shows the rate on a 0.96-inch OLED.

What's in the box

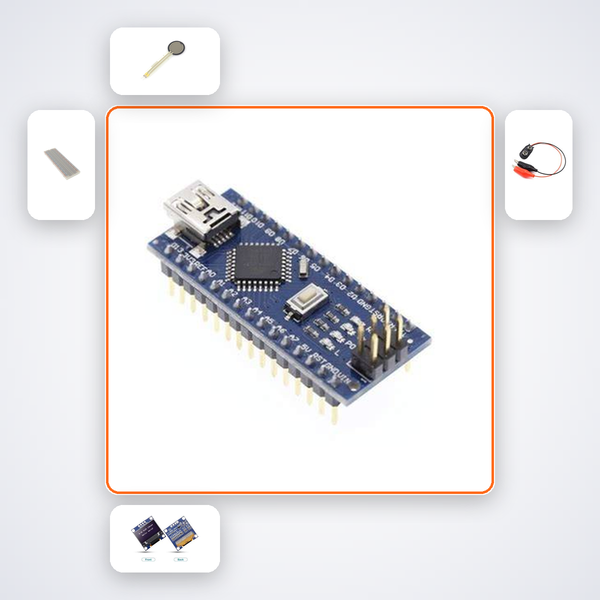

  • Arduino Nano
  • FSR 402 × 2
  • 0.96in OLED
  • 10kΩ Resistors × 5
  • 100nF Caps × 5
  • Elastic Strap 50cm
  • 400-pt Breadboard
  • M-M Wires × 20
  • 9V Battery Snap

Power: 9V battery, not included.

Skill level: Intermediate (3-4 hours).

Frequently asked questions

Is this a medical monitor?

No. It's a learning project and must not be used for health decisions.

How does it detect breathing?

The strap presses the force sensors harder as the chest expands, and the Nano counts each rise and fall.

Do I need to solder?

No. It is built on the included breadboard.

Strap this slim sensor band around your chest, and within hours you’ll have a real-time respiration rate monitor displaying breaths per

FSR under chest strap detects breathing expansion cycles and calculates breaths per minute on OLED.
