Breathing Biofeedback Trainer Kit with Arduino Nano + FSR 402

SKU: CDN-KIT-0783-CL Brand: Compoden Category: Electronics > Wearables & Health > Project Kits
Rs. 1,360.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Breathing Biofeedback Trainer Kit with Arduino Nano + FSR 402 — an intermediate-level kit.

Arduino Nano Breathing Rate Biofeedback Trainer – Reduce Stress by Mastering Breath Control with LED Guidance

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Intermediate Build Time: 3-4 hrs Skill: Biofeedback system design

Kit at a glance

What you build: A paced-breathing trainer: two FSR 402 force sensors in an elastic strap feel your chest rise and fall, and an Arduino Nano lights LEDs and beeps to show whether you're breathing at your chosen pace. It teaches how a sensor, a target and feedback work together.

What's in the box

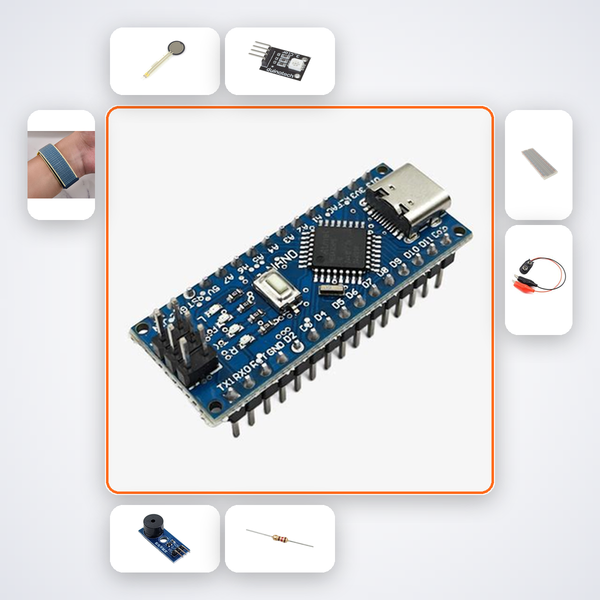

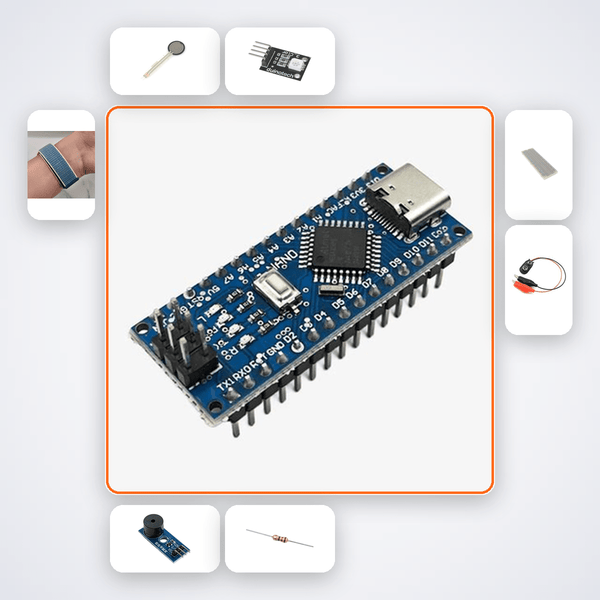

  • Arduino Nano
  • FSR 402 × 2
  • 5mm RGB LED × 2
  • Passive Buzzer
  • 10kΩ Resistors × 5
  • 220Ω Resistors × 5
  • Elastic Strap 60cm
  • 400-pt Breadboard
  • M-M Wires × 20
  • 9V Battery Snap

Power: 9V battery, not included.

Skill level: Intermediate (3-4 hours).

Frequently asked questions

Is this a medical device?

No. It is a learning project, not for treating stress or any condition.

Can I change the target pace?

Yes. It's a setting in the code.

Do I need to solder?

No. It is built on the included breadboard.

This kit enables you to build a wearable chest belt that monitors your breathing in real-time. Two force-sensitive resistors detect inhalation and exhalation cycles, while an RGB LED and buzzer provide visual and audio cues to guide you into a slow, calming rhythm. Perfect for students exploring wearable health tech or anyone wanting a tangible tool for mindfulness and stress management.

What You'll Build

You’ll assemble a comfortable elastic strap that houses two FSR sensors, read by an Arduino Nano. The system lights up a green LED when you inhale within a target time window and a red LED with a warning beep if you breathe too fast, training your body toward a meditative 6-breaths-per-minute pattern.

What You'll Learn

  • Calibrating force-sensitive resistors for precise breath detection.
  • Programming Arduino to process real-time sensor data and control output devices.
  • Designing a wearable form factor that integrates electronics with fabric.
  • Understanding the principles of biofeedback and respiratory sinus arrhythmia.

Kit Contents

Component Quantity
Arduino Nano x1
FSR 402 x2
5mm RGB LED x2
Passive Buzzer x1
10kΩ Resistors x5
220Ω Resistors x5
Elastic Strap 60cm x1
400-pt Breadboard x1
M-M Wires x20
9V Battery Snap x1

Who This Kit Is For

This kit is ideal for CBSE students bridging physics and biology through a practical biofeedback experiment. B.Tech ECE and BME students tackling health-tech projects will find the wearable sensor integration deeply instructive. Smart India Hackathon teams developing stress-relief solutions can rapidly prototype using this pre-tested system. ATL Tinkering Labs and hobbyist makers curious about mindful wearables will appreciate the guided build.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

The AI companion provides step-by-step debugging tips, and you can reach us on WhatsApp for human backup during the build.

Can I substitute the elastic strap?

The kit’s strap length and tension are chosen for reliable FSR contact. Using a different strap may cause inconsistent sensor readings.

Does this kit work with other microcontrollers?

The AI companion and code are tuned for Arduino Nano, but the sensor circuit and logic can be adapted to other boards with your own programming.

How do I ensure accurate breath detection?

The pre-loaded calibration routine walks you through proper strap tension and sensor positioning, so your first reading is precise.

FSR chest belt detects breathing cycles. LED and buzzer guide inhalation timing for stress reduction training.
