Pulse Transit Time Explorer Kit: Arduino Nano + 2× MAX30102
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Pulse Transit Time Explorer Kit: Arduino Nano + 2× MAX30102 — an intermediate-level kit.
Pulse Transit Time Explorer Kit: Arduino Nano + 2× MAX30102
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
This is a learning project, not a medical device. Don't use it to diagnose, treat or monitor any health condition.

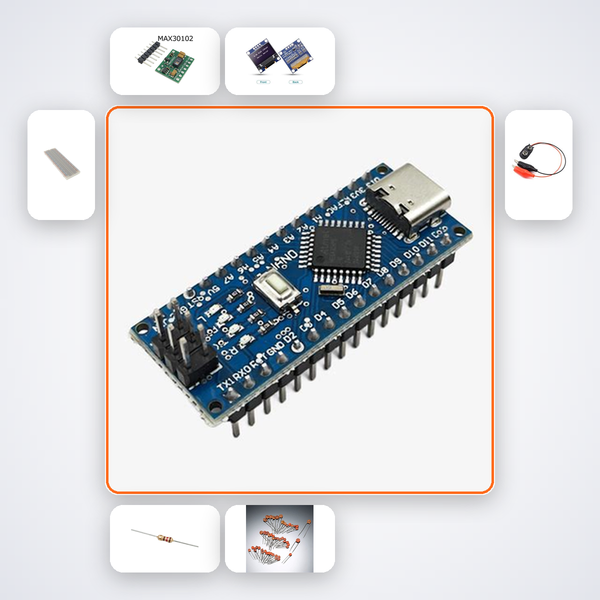

This kit transforms two MAX30102 optical sensors, an Arduino Nano, and clever algorithm work into a functional prototype that displays results on a crisp OLED.
What You'll Build
You'll assemble a compact prototype that straps to your forearm or wrist, capturing photoplethysmogram (PPG) signals from two points along the radial artery.
What You'll Learn
- Acquire and filter raw PPG signals from dual MAX30102 sensors via I2C
- Implement peak detection and pulse transit time calculation in real time
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | x1 |
| MAX30102 | x2 |
| 0.96in OLED | x1 |
| 4.7kΩ Resistors | x10 |
| 100nF Caps | x5 |
| 400-pt Breadboard | x1 |
| M-M Wires | x20 |
| M-F Wires | x15 |
| 9V Battery Snap | x1 |
Who This Kit Is For
CBSE students tackling advanced physics or computer science projects will find a rich hands-on challenge.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The included AI companion walks you through every step, from wiring to algorithm tuning; you can also reach us over WhatsApp for a quick human answer.
What's in this kit
- Arduino Nano
- MAX30102 x2
- 0.96in OLED
- 4.7kΩ Resistors x10
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- M-F Wires x15
- 9V Battery Snap
