3-Factor Secure Drug Locker Dispenser Kit with ESP32 + R307 Fingerprint Sensor
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
3-Factor Secure Drug Locker Dispenser Kit with ESP32 + R307 Fingerprint Sensor — an expert-level kit.
3-Factor Secure Drug Locker Dispenser Kit with ESP32 + R307 Fingerprint Sensor — ESP32, Fingerprint, RFID & PIN
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A three-factor lockbox: a compartment opens only after a registered fingerprint (R307), a valid RFID card (MFRC522) and a correct PIN on the keypad. An ESP32 drives two SG90 servo latches, guides each step on a 0.96-inch OLED, and logs every opening with DS3231 timestamps.
What's in the box

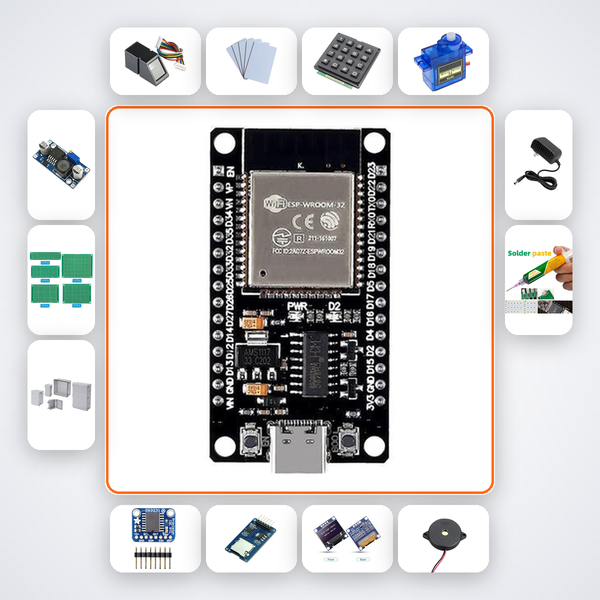

- ESP32 Dev Board
- R307 Fingerprint
- MFRC522 RFID
- 4x4 Keypad
- SG90 Servo × 2
- DS3231 RTC
- MicroSD Module
- 0.96in OLED
- Active Buzzer
- LM2596 Buck Converter
- PCB Prototype Board × 3
- Enclosure Box
- 12V Adapter
- Soldering Iron
- Solder Wire
Power: the 12V adapter. No batteries needed. RFID cards and a microSD card are not included.
Skill level: Advanced (15-20 hours).
Frequently asked questions
What does "three-factor" mean?
Something you are (fingerprint), something you have (card) and something you know (PIN), all needed together.
Can I store medicines in it?
It is a learning project, not a certified medicine cabinet.
Do I need to solder?
Yes. This is a soldered build, and the kit includes a soldering iron and solder.
Control access to sensitive medications with a real-world embedded system that enforces fingerprint, RFID, and PIN verification in sequence. This advanced kit guides you in building a fully functional automated drug locker dispenser, complete with timestamped access logs and a servo-driven release mechanism — ideal for clinical, institutional, or research environments where audit trails are non-negotiable.
What You'll Build
You will construct a wall-mountable, enclosed dispenser that opens a secure compartment only after a registered fingerprint, a valid RFID card/tag, and a correct 4-digit PIN are presented. The 0.96-inch OLED walks users through each step, the DS3231 RTC stamps every event, and the microSD module stores a permanent log. Two SG90 servos actuate the door and a lock bolt, with an active buzzer for alert feedback.
What You'll Learn
- Integrate R307 optical fingerprint sensor with ESP32 and implement 1:1 verification logic
- Design a multi-factor authentication state machine that merges MFRC522 RFID reads, keypad input, and biometric checks
- Control dual SG90 servos with PWM for precise compartment opening and locking, including position feedback routines
- Log access events with DS3231 RTC timestamps, save structured data to a microSD card, and display status on an OLED
Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| R307 Fingerprint | 1 |
| MFRC522 RFID | 1 |
| 4x4 Keypad | 1 |
| SG90 Servo | 2 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 0.96in OLED | 1 |
| Active Buzzer | 1 |
| LM2596 Buck Converter | 1 |
| PCB Prototype Board | 3 |
| Enclosure Box | 1 |
| 12V Adapter | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Who This Kit Is For
Designed for advanced makers, B.Tech final-year students in ECE, EEE, and CSE working on IoT security projects, Smart India Hackathon teams developing healthcare access solutions, and professionals prototyping pharmacy automation or controlled substance management. If you need a full-stack embedded system with biometric logging, this kit delivers everything in one box.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to access your AI companion, which walks you through every wiring step and code line. For further troubleshooting, drop a message on WhatsApp — our team responds.
Can I enroll more than one fingerprint or RFID card?
Absolutely. The firmware supports multiple users; you will learn to manage a database of authorized fingerprints and RFID tags, each linked to an ID for logging.
Does this kit work with refrigerated medications?
The enclosure is not refrigerated, so it's meant for ambient-temperature drugs. However, you can integrate a DHT22 sensor (optional) to monitor internal conditions and log them alongside access events.
Is the dispensing mechanism secure against tampering?
The servos hold the door closed with active torque when locked, and the stout enclosure resists forced entry. Combined with PIN/biometric protection, it provides strong physical and electronic security.
Fingerprint + RFID + PIN three-factor. Servo opens compartment. Logs dispensing event with timestamp and user ID.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
Other projects you can build
