TLS MQTT Cloud Node Kit: ESP32, Certificates, DHT22, BMP280 — an intermediate-level kit.
TLS MQTT Cloud Node Kit: ESP32, Certificates, DHT22, BMP280
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A TLS MQTT cloud node: an ESP32 publishes temperature, humidity (DHT22) and pressure (BMP280) to a cloud IoT service over MQTT with TLS, using device certificates, and a small cloud function saves each reading to a database.

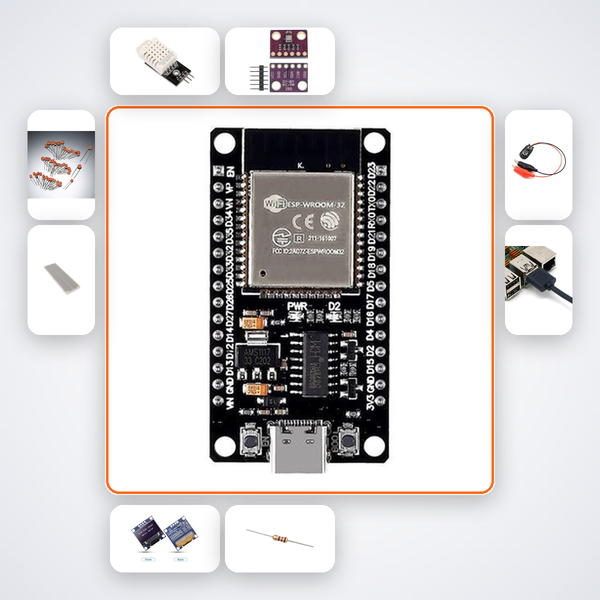

What's in the box
- ESP32 Dev Board
- DHT22
- BMP280
- 0.96in OLED
- 4.7kΩ Resistors × 5
- 100nF Capacitors × 5
- 400-pt Breadboard
- M-M Wires × 20
- Micro USB Cable
Power: USB. A USB charger is not included.
Skill level: Intermediate (4-5 hours).
Frequently asked questions
Do I need a cloud account?
Yes, with an IoT service that supports MQTT over TLS. Some have free tiers.
What does TLS protect?
Readings can't be read or changed on the way.
Imagine a single device that captures real-world temperature, humidity, and atmospheric pressure, then pushes that data securely into your own cloud cloud pipeline. This kit turns the ESP32 into an industrial-grade sensor node that speaks MQTT over TLS to a cloud IoT service, where a cloud function ingests every reading and writes it into a cloud database. That’s not a tutorial — it’s the project you’ll have running by the end of the day.
What You'll Build
You’ll assemble a compact environmental monitor around an ESP32, DHT22, and BMP280, then configure TLS certificates and MQTT topics to connect directly to a cloud IoT service. Every sensor reading appears on the onboard OLED before it’s routed to the cloud. You’ll end up with a live cloud database table capturing timestamped data — exactly the foundation remote monitoring dashboards, AgriTech sensors, or weather stations need.
What You'll Learn
- Provisioning X.509 certificates and setting up ESP32 TLS for secure MQTT to a cloud IoT service
- Publishing structured JSON payloads with QoS level 1 and handling cloud IoT topic routing
- Interfacing I2C sensors (DHT22, BMP280) and a 0.96-inch OLED display with a single ESP32
- Creating a cloud function trigger that writes incoming IoT data into cloud database tables
Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| DHT22 | 1 |
| BMP280 | 1 |
| 0.96in OLED | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Capacitors | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| Micro USB Cable | 1 |
Who This Kit Is For
CBSE students diving into cloud IoT for their computer science electives, B.Tech ECE/EEE undergraduates building end-semester prototypes, and Smart India Hackathon teams needing a working node by demo day. ATL Tinkering Lab mentors and JNV/VIT/NIT/BITS IoT clubs will also find it paced for intermediate makers who already know basic Arduino and want the real cloud integration.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to chat with the AI companion trained on this exact ESP32-cloud flow. If you need a human touch, message us on WhatsApp and we’ll debug alongside you.
Do I need an existing cloud account to complete the project?
Yes, you’ll set up a free-tier account during the build. The AI companion walks you through every console step, from cloud IoT service thing creation to a cloud function permissions.
Can I skip the OLED display and just read data in the cloud?
Absolutely. The OLED is there for local feedback, but the core data pipeline works without it. The AI guide includes wiring for both configurations.
Is the cloud function code provided or do I write it myself?
The AI companion delivers a ready-to-deploy Node.js cloud function template. You’ll configure it with your cloud database table name and deploy it together.
ESP32 publishes sensor data to a cloud IoT service over MQTT TLS. A cloud function stores readings in a cloud database.
What's in this kit
- ESP32 Dev Board
- DHT22
- BMP280
- 0.96in OLED
- 4.7kΩ Resistors x5
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- Micro USB Cable
