Nursery Climate Controller Kit: Nano, HC-05, EEPROM Settings
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Nursery Climate Controller Kit: Nano, HC-05, EEPROM Settings — an intermediate-level kit.
Nursery Climate Controller Kit: Nano, HC-05, EEPROM Settings
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A nursery climate controller you set from your phone: send temperature limits to an Arduino Nano over Bluetooth (HC-05), and it saves them in EEPROM so they survive a power cut. A DHT22 reads the room, a relay switches a fan or heater, and the OLED shows the readings and limits.

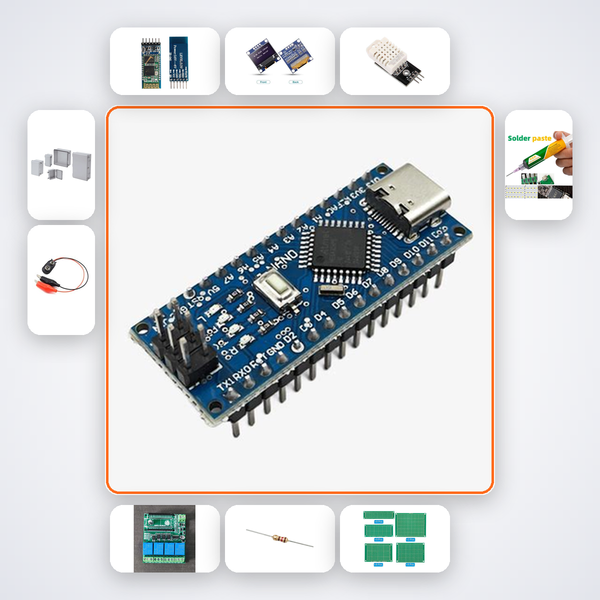

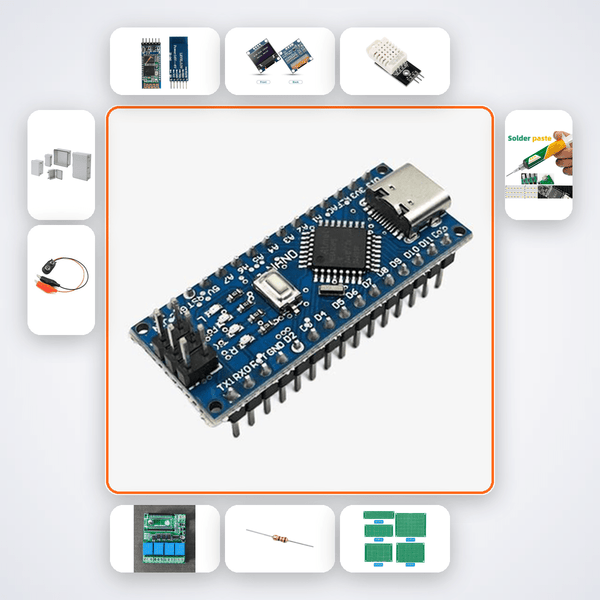

What's in the box
- Arduino Nano
- HC-05 Bluetooth
- 0.96in OLED
- DHT22
- 5V Relay Module
- 100Ω Resistors × 3
- 10kΩ Resistors × 5
- PCB Prototype Board × 2
- ABS Enclosure Box
- 9V Battery Snap
- Soldering Iron
- Solder Wire
Power: 9V battery, not included. The fan or heater is not included.
Skill level: Intermediate (3-4 hours).
Frequently asked questions
Is it a baby monitor?
No. It manages room climate only, with no audio, video or health monitoring.
What is EEPROM?
Memory that keeps its contents with the power off.
Create a nursery monitor that not only shows temperature and humidity on an OLED screen but also lets you tweak comfort settings wirelessly from your phone. The Arduino Nano stores your thresholds in EEPROM, so a power cut doesn’t erase them—ideal for Indian homes where uninterrupted care matters.
What You'll Build
You’ll assemble a compact device housed in an ABS enclosure that reads DHT22 sensor data, displays it live on a 0.96in OLED, and can switch a 5V relay (for a small fan or heater) based on thresholds. All configurations are sent over HC-05 Bluetooth without needing to recompile code, and they survive every restart.
What You'll Learn
- How to integrate a DHT22 with Arduino Nano and output real-time readings to an OLED display.
- Setting up HC-05 Bluetooth for wireless parameter updates from a smartphone.
- Writing and reading configuration values to Arduino’s internal EEPROM for persistence.
- Controlling mains-rated appliances safely using a 5V relay module.
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | x1 |
| HC-05 Bluetooth | x1 |
| 0.96in OLED | x1 |
| DHT22 | x1 |
| 5V Relay Module | x1 |
| 100Ω Resistors | x3 |
| 10kΩ Resistors | x5 |
| PCB Prototype Board | x2 |
| ABS Enclosure Box | x1 |
| 9V Battery Snap | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Who This Kit Is For
Designed for CBSE students exploring embedded projects, B.Tech ECE/EEE undergraduates, or ATL Tinkering Lab tinkerers. Even a tech-savvy parent can build this for their own nursery and avoid commercial monitors that lack local configurability.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to open the AI companion, which has wiring diagrams and troubleshooting steps specific to this kit. WhatsApp support is also available.
Do I need to write the smartphone app myself?
No. The kit includes a ready-to-install APK that communicates over Bluetooth, so you can set thresholds without any app coding. The Arduino sketch is fully commented for customisation.
Will a power cut reset all my settings?
No. The configuration is saved in the Arduino Nano’s EEPROM, which retains data even when the battery is removed or power fails.
Can I extend the monitor with more sensors?
Absolutely. The prototype board and detailed schematic make it straightforward to add extra modules like a PIR motion sensor or an ESP8266 for WiFi logging later.
Settings persist power cycles.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
