Pi Pico PIO SPI Accelerator
Master Raspberry Pi Pico PIO for High-Speed SPI: 60fps ILI9341 Display Driver Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
You’ll transform a standard Raspberry Pi Pico into a hardware SPI master capable of driving a 2.4‑inch ILI9341 TFT at a smooth 60 frames per second — five times faster than ordinary bit‑banging code. This project teaches you to program the Pico’s programmable I/O (PIO) state machines to generate precise 62.5 MHz SPI transactions, unlocking professional‑grade display performance for dashboards, data loggers, and portable instruments.
What You'll Build
A solder‑assembled display module that reads temperature from a DHT22 and motion from an MPU6050, then updates a real‑time graphical dashboard at 60fps. The kit includes everything needed to mount the TFT, sensors, and Pico onto a prototype board, with proper pull‑up resistors and power decoupling. You’ll leave with a reusable high‑speed SPI driver library written entirely in PIO assembly, ready to reuse in any RP2040 project.
What You'll Learn
- Program PIO state machines for deterministic hardware SPI at 62.5 MHz
- Interface three SPI devices (ILI9341 TFT, DHT22, MPU6050) on a shared bus using chip selects
- Solder surface‑mount pins and through‑hole components onto a perfboard with reliable connections
- Write a compact SPI master driver in PIO assembly and MicroPython that exceeds 50 MHz clock speeds

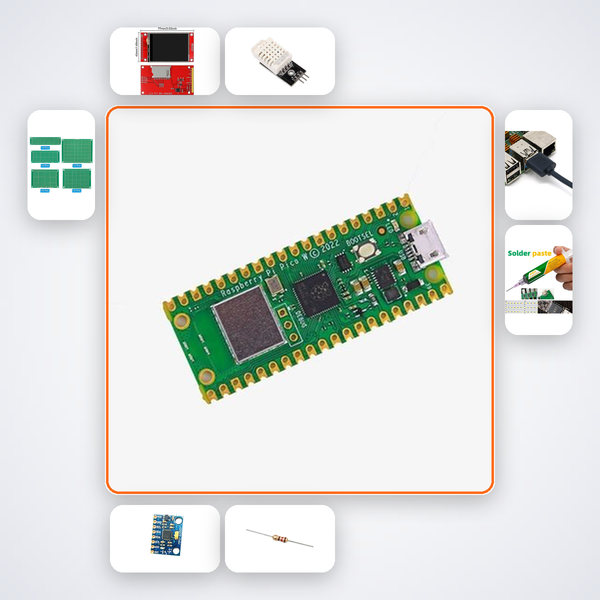

Kit Contents
| Component | Quantity |
|---|---|
| Raspberry Pi Pico | x1 |
| 2.4in TFT ILI9341 | x1 |
| DHT22 | x1 |
| MPU6050 | x1 |
| 4.7kΩ Resistors | x5 |
| PCB Prototype Board | x2 |
| Micro USB Cable | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech ECE/EEE undergraduates at IITs, NITs, VIT, and BITS Pilani tackling embedded systems capstone projects. Smart India Hackathon finalists who need fast, reliable HMI dashboards for their prototypes. Advanced makers and RP2040 enthusiasts ready to explore the PIO block beyond trivial examples and deliver production‑grade SPI throughput.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck understanding PIO assembly?
The AI companion breaks down each state machine instruction and provides timing diagrams, plus you can reach out on WhatsApp for live debugging tips.
Can I use this kit without prior soldering experience?
We include a basic soldering iron and a visual step‑by‑step guide; practice joints on the included prototype board before the main assembly and you’ll build confidence quickly.
Will this work with the original Raspberry Pi Pico, not the Pico W?
Absolutely — it works with any RP2040‑based board. The PIO block is identical across all variants, and we ship the standard Pico in this kit.
Can I integrate additional SPI sensors like a BME280?
After completing the kit, you’ll have a robust PIO SPI driver. You can easily add any 3.3V SPI device by extending the chip select logic and defining new transaction timings using the same architecture.
Pico PIO state machine implements hardware SPI at 62.5MHz. Drives ILI9341 TFT at 60fps vs 10fps software.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
