Capacitor Bank Energy Storage Demo Kit with Arduino Uno + LED — a beginner-level kit.

Capacitor Bank Energy Storage Demo Kit with Arduino Uno – Measure Joules Stored

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Energy measurement & monitoring

Harness the sun to store energy in supercapacitors and watch exactly how many Joules flow in and out with a real-time OLED display. This kit turns abstract energy concepts into a tangible, measurable demonstration. Just connect the solar panel, the INA219 sensor, and the capacitor bank to the Arduino Uno, load the code, and you have a working energy meter that shows every Joule accumulated during charging and each Joule released when you turn on the LED.

What You'll Build

You'll assemble a solar-powered energy storage system that charges four 1-farad supercapacitors through diode-protected circuitry. An INA219 power monitor precisely tracks voltage, current, and power, while the Arduino Uno calculates total Joules stored and the OLED displays the data in real time. A white LED demonstrates the stored energy being released, giving you a complete energy cycle from sunlight to light output.

What You'll Learn

  • Power and energy measurement using the INA219 sensor
  • How supercapacitors differ from batteries in charging and discharging behaviour
  • Reading sensor data with Arduino and displaying it on an OLED
  • Practical circuit protection using Schottky diodes (1N5819)

Kit Contents

Component Quantity
Arduino Uno R3 1
INA219 1
Solar Panel 6V 2W 1
Supercapacitor 1F 5V 4
0.96in OLED 1
1N5819 Diode 3
4.7kΩ Resistors 5
400-pt Breadboard 1
M-M Wires 20

Who This Kit Is For

If you're a CBSE or 12 student building a physics project on capacitors and energy storage, this kit gives you everything you need with exact wiring and code. B.Tech ECE/EEE students can use it as a hands-on lab for INA219-based power monitoring, and ATL Tinkering Lab mentors will find it ideal for introducing energy concepts to makers. It also fits neatly into Smart India Hackathon energy tracks or school-level science exhibitions.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Simply scan the QR code inside the box to chat with the AI companion that knows every wire, code line, and schematic of this project. You can also reach us on WhatsApp for a human response.

Can I use this kit for a school science exhibition?

Absolutely. This kit demonstrates how capacitors store and release energy, making it an excellent exhibit for CBSE, ICSE, or state-board science fairs. The real-time Joules display helps judges see the concept instantly.

Do I need bright sunlight to charge the capacitors?

While direct sunlight charges the capacitors fastest, the 6V 2W panel can harvest energy from strong indoor lighting as well. A full charge from empty may take longer under artificial light, but the INA219 will show the gradual increase in Joules.

Is any soldering required?

No soldering needed. All components plug into the included 400-point breadboard with jumper wires. The AI companion guides you through every connection.

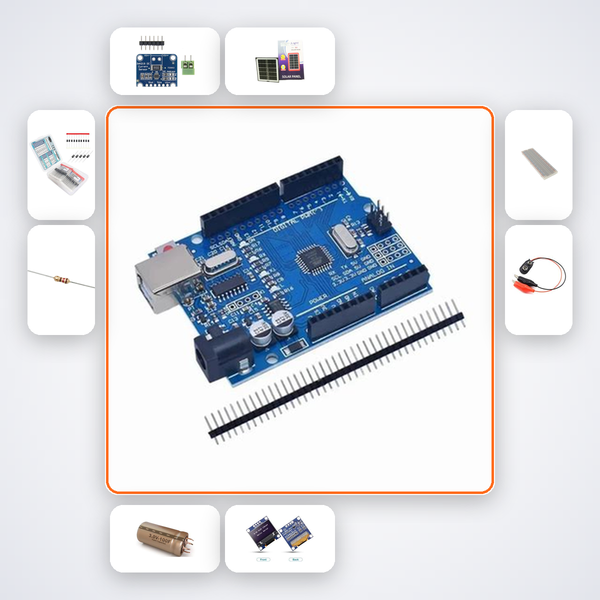

Supercapacitor bank charged by solar. INA219 measures charge and discharge power. OLED shows Joules stored.
