Digital Effects Pedal Kit with Arduino Due

SKU: CDN-KIT-0322-CL-SLD Brand: Compoden Category: Electronics > Audio & Music > Project Kits
Rs. 3,203.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Digital Effects Pedal Kit with Arduino Due — an advanced-level kit.

Master Audio DSP: Build Your Own Digital Effects Pedal with Arduino Due

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 6-8 hrs Skill: DSP Audio Processing & Embedded C

This advanced kit transforms a raw guitar signal into three studio‑grade effects – delay, reverb, and distortion – using real‑time digital signal processing on the Arduino Due. You’ll solder the entire analog front‑end (MAX4466 preamp and PAM8403 power amp) onto a prototyping board, interface a 12‑bit ADC and MCP4725 DAC, and enclose everything in a sturdy stompbox. The result is a fully customisable pedal that runs on a 9V battery, ready for a campus gig, a Smart India Hackathon demo, or an engineering vivavoce.

What You'll Build

By the final screw, you’ll own a working guitar effects pedal. Three foot‑switchable modes – delay, reverb, and distortion – are shaped by three potentiometers: delay time, reverb depth, and distortion gain. The signal path starts at a 6.35mm mono input, passes through the preamp and the Due’s ADC, gets processed by your DSP code, exits through the DAC and power amp, and reaches the output jack. You’ll understand every millivolt along the way.

What You'll Learn

  • Implement real‑time FIR and IIR filter algorithms on ARM Cortex‑M3 for audio effects
  • Interface a 12‑bit ADC and I2C MCP4725 DAC with precise timing for sub‑20 ms latency
  • Design, solder, and debug an analog front‑end with MAX4466 preamp and PAM8403 power stage
  • Package a DSP system in an enclosure, handling grounding, shielding, and mechanical robustness

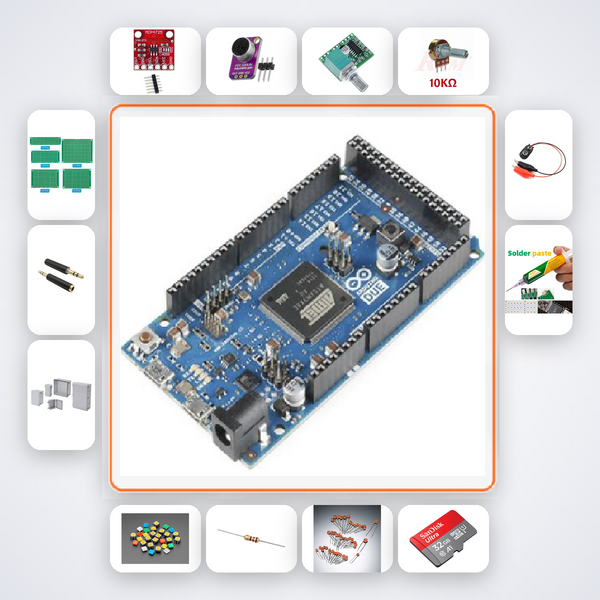

Kit Contents

Component Quantity
Arduino Due 1
MCP4725 DAC 1
MAX4466 Amp 1
PAM8403 Amp 1
10kΩ Potentiometer 3
Tactile Button 3
10kΩ Resistors 10
100nF Caps 15
10µF Caps 5
PCB Prototype Board 2
6.35mm Mono Jack Socket 2
Enclosure Box 1
9V Battery Snap 1
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

B.Tech ECE/EEE students working on DSP or embedded systems mini‑projects will find this kit an instant head‑start. Smart India Hackathon teams can prototype an audio solution in a weekend. Even final‑year candidates at IITs, NITs, VIT, and BITS Pilani use it to demonstrate real‑time signal processing. Advanced CBSE innovators and ATL Tinkering Lab graduates (aged 18+) who crave a challenging, gig‑ready build will feel right at home.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code inside the box to chat with the AI companion, which knows every solder joint and line of DSP code. If you need a human touch, our WhatsApp support line is staffed by engineers who have built this pedal themselves.

Can I modify the effects or add new ones?

Absolutely. The Arduino Due is fully reprogrammable via USB. You can alter the delay taps, change the reverb diffusion network, or code a flanger, chorus, or tuner. The AI companion can suggest C++ code snippets for common DSP blocks.

Do I need prior DSP experience?

This is an advanced build, but the printed guide explains FIR filters, circular buffers, and I²S‑like timing step by step. You should be comfortable with Arduino IDE and basic C; DSP concepts are introduced progressively so you learn while building.

What instruments can I plug into this pedal?

Any instrument with a 6.35 mm mono output works – electric guitars, bass guitars, even analog synthesizers. The pedal runs on a standard 9 V battery, giving you complete portability for jam sessions, stage performances, or lab demonstrations.

Arduino Due processes guitar signal through delay, reverb and distortion DSP algorithms via 12-bit ADC and DAC.

What's in this kit

Choose your assembly option:

  • Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
  • Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
