Drone Perimeter Guard Kit with ESP32 + Motor
Build a Tethered ESP32 GPS Patrol Drone with Radar Intruder Detection
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Turn a blank F450 frame into a patrolling sentinel that navigates a preset GPS waypoint circuit, streams real-time video from an ESP32-CAM, and uses dual radar modules to trigger alerts the moment an intruder crosses the perimeter. This kit gives you everything to assemble a tethered drone security system—no piecemeal hunting, no guesswork on component compatibility.
What You'll Build
A fully functional drone that flies along a sequence of GPS coordinates you program, all while a tether provides uninterrupted power and data link. Two RCWL-0516 microwave radar modules scan the area around the patrol path; when motion is detected, the ESP32-CAM captures high-resolution images and pushes them to your ground station via NRF24L01 modules—creating a surveillance barrier that works day and night.
What You'll Learn
- Programming waypoint navigation with NEO-6M GPS and ESP32 PID control
- Streaming JPEG video from ESP32-CAM over a long-range NRF24L01 link
- Integrating RCWL-0516 radar sensors for multi‑zone intrusion detection and instant alerting
- Assembling and tuning a brushless quadcopter drivetrain with 30A ESCs and 2204 motors

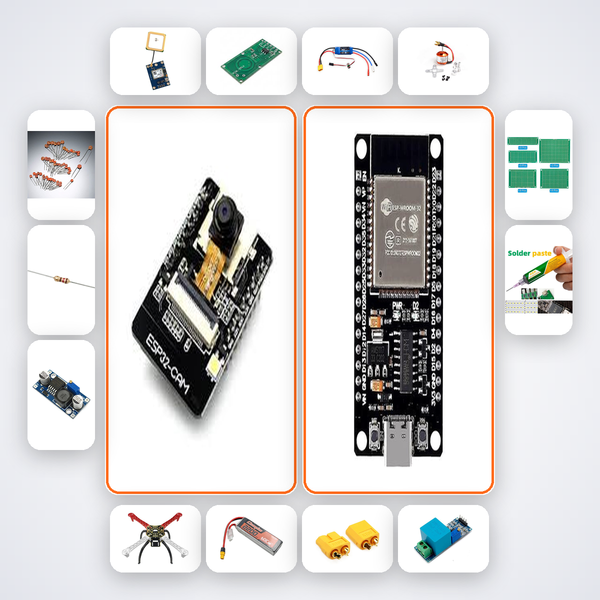

Kit Contents
| Component | Quantity |
|---|---|
| ESP32-CAM | 1 |
| ESP32 Dev Board | 1 |
| NEO-6M GPS | 1 |
| RCWL-0516 Radar Module | 2 |
| ESC 30A | 4 |
| Brushless Motor 2204 | 4 |
| F450 Frame | 1 |
| 3S LiPo 2200mAh | 1 |
| XT60 Connector | 1 |
| NRF24L01 | 2 |
| 100nF Caps | 15 |
| 4.7kΩ Resistors | 5 |
| LM2596 Buck Converter | 1 |
| PCB Prototype Board | 3 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit is built for experienced makers, engineering professionals, and post‑graduate researchers who need a real‑world surveillance prototype. B.Tech ECE/EEE final‑year students designing drone‑based security for campus or farm perimeters will find it ideal. It also fits Smart India Hackathon teams working on IoT defense solutions, ATAL Tinkering Lab mentors demonstrating advanced autonomous systems, and M.Tech embedded‑systems researchers testing radar‑assisted navigation.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to open the AI companion, which has step‑by‑step guidance for this exact drone. You can also reach our support team via WhatsApp for personalized help.
Why does the drone need to be tethered?
The tether supplies continuous power and a fail‑safe data link, so you can run 24‑hour patrols without swapping batteries and avoid the latency of battery‑powered video transmission.
What is the detection range of the radar modules?
The RCWL‑0516 sensors can detect motion up to 7 meters away through walls and foliage. Two modules mounted on opposite sides of the drone create a wide overlapping coverage zone.
Does this drone comply with Indian DGCA regulations?
The F450 frame falls under the micro category (less than 2 kg). Always follow No‑Permission‑No‑Takeoff (NPNT) norms and check local drone operation rules before flying outdoors.
Tethered ESP32 drone patrols a GPS waypoint circuit and streams live camera feed while radar module detects intruders.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
