Motion-Triggered Clip Recorder Kit: ESP32-CAM, PIR, RTC

SKU: CDN-KIT-2232-SLD Brand: Compoden Category: Electronics > Mini & Nano Form Factor > Project Kits
Rs. 2,180.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Motion-Triggered Clip Recorder Kit: ESP32-CAM, PIR, RTC — a beginner-level kit.

Motion-Triggered Clip Recorder Kit: ESP32-CAM, PIR, RTC

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 3-4 hrs Skill: Motion sensing & data logging

Kit at a glance

What you build: A motion-triggered clip recorder: a PIR wakes an ESP32-CAM, which records a short clip to microSD, and the DS3231 clock stamps each clip with the time. Use it to watch a doorway, a shelf or a garden path.

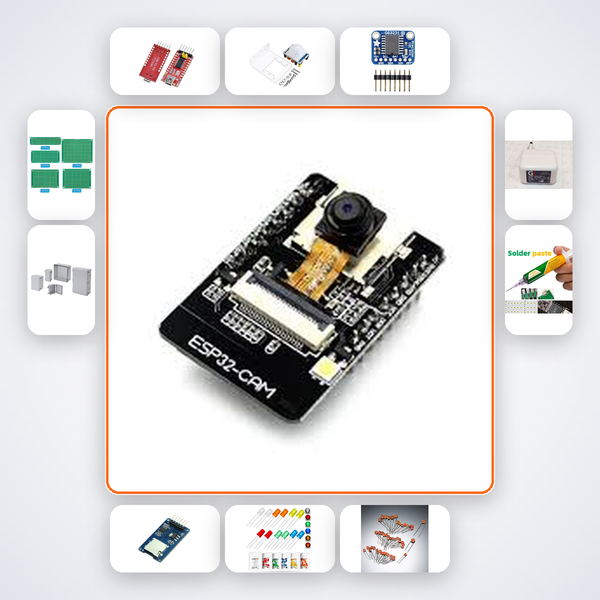

What's in the box

  • ESP32-CAM
  • FTDI Programmer
  • HC-SR501 PIR
  • DS3231 RTC
  • MicroSD Module
  • 5mm LED × 2
  • 100nF Caps × 5
  • PCB Prototype Board × 2
  • ABS Enclosure Box
  • 5V 2A PSU
  • Soldering Iron
  • Solder Wire

Power: 5V 2A adapter included. A microSD card is not included.

Skill level: Beginner (3-4 hours).

Frequently asked questions

Can I use it in a car?

Not as built: it runs from a mains adapter and a PIR isn't suited to a moving car.

Why a USB-serial programmer?

The ESP32-CAM has no USB port, so you program it through the adapter.

This kit turns an ESP32-CAM into a mini surveillance logger that captures short video clips whenever its PIR sensor triggers, then stamps each file with the exact date and time from a DS3231 real-time clock. It’s the perfect weekend project for anyone curious about how security cameras and video loggers work.

What You'll Build

When the HC-SR501 passive infrared sensor detects a warm body moving nearby, the ESP32-CAM instantly wakes up, records a short video clip, and saves it to the microSD card with a filename that includes the DS3231 timestamp. The status LED confirms recordings and power, making the whole system intuitive and fun to test.

What You'll Learn

  • Interfacing a PIR sensor to detect motion and trigger camera capture
  • Using the DS3231 RTC module to add precise timestamps to recorded files
  • Programming an ESP32-CAM to capture video and log data to an SD card
  • Soldering components onto a PCB prototype board and assembling an enclosure

Kit Contents

Component Quantity
ESP32-CAM 1
FTDI Programmer 1
HC-SR501 PIR 1
DS3231 RTC 1
MicroSD Module 1
5mm LED 2
100nF Caps 5
PCB Prototype Board 2
ABS Enclosure Box 1
5V 2A PSU 1
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

Designed for makers (with adult supervision for soldering) as well as CBSE students preparing a science exhibition project. It’s also a great hands-on entry for ATL Tinkering Lab members and B.Tech ECE students looking for a compact IoT logging demo. The clear assembly steps and included soldering iron make it approachable for first-time builders.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

If you need a human, just message us on WhatsApp — we’ll reply.

How do I upload code to the ESP32-CAM?

The included FTDI Programmer connects directly to the board, and the AI companion gives you the exact Arduino IDE setup steps and the pre-tested sketch. You’ll be recording within a few minutes of uploading.

ESP32-CAM records short video clips on motion trigger. DS3231 timestamps each clip on SD card.

What's in this kit

Choose your assembly option:

  • Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
  • Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
