Handpan Emulator Kit with Arduino Mega
Arduino Mega Handpan Emulator Kit — Build a Touch‑Sensitive Musical Instrument
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Strike a metal pan and hear a resonant handpan note — not from synthesized sound, but from a real sample triggered at the exact velocity of your touch. This advanced kit lets you create a nine‑note handpan emulator using piezo sensors, an Arduino Mega, and a DFPlayer Mini audio module. Whether you are a musician exploring electronic interfaces, an engineering student designing a final‑year project, or an artist building an interactive installation, this kit delivers a professional‑grade instrument you can modify and perform with.
What You'll Build
A fully functional handpan emulator with nine touch‑sensitive zones on any flat metal surface. Each piezo sensor beneath the surface detects a strike, maps its intensity to velocity, and triggers a distinct handpan sample stored on an 8GB microSD card. The audio passes through a PAM8403 amplifier to a 3W speaker, giving you immediate acoustic feedback for live performances or studio experimentation. The entire system is powered by an Arduino Mega, ensuring smooth, low‑latency playback even when multiple sensors are struck simultaneously.
What You'll Learn
- Interfacing multiple piezo sensors using analog multiplexing and dynamic threshold detection to prevent false triggers.
- Programming an Arduino Mega to read sensor values, map velocity, and command the DFPlayer Mini via serial protocol in real time.
- Integrating a DFPlayer Mini module for low‑latency sample playback from an SD card and managing audio file indexing.
- Designing a low‑noise power and amplification circuit with a PAM8403 amp, decoupling capacitors, and star grounding for clean audio output.
Kit Contents

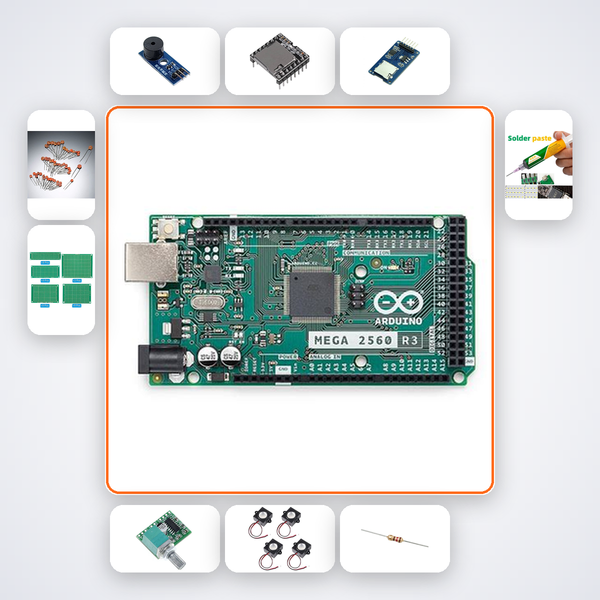

| Component | Quantity |
|---|---|
| Arduino Mega 2560 | x1 |
| Piezo Disk 27mm | x9 |
| DFPlayer Mini | x1 |
| MicroSD Card 8GB | x1 |
| PAM8403 Amp | x1 |
| 3W 8Ω Speaker | x1 |
| 1MΩ Resistors | x9 |
| 100nF Caps | x9 |
| 10kΩ Resistors | x5 |
| PCB Prototype Board | x3 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Designed for B.Tech ECE/EEE students building advanced audio and signal processing projects, participants in Smart India Hackathon exploring alternative musical interfaces, and hobbyist musicians seeking a unique electronic instrument. Also suitable for ATL Tinkering Lab mentors demonstrating sensor fusion and real‑time systems at IIT, NIT, VIT, or BITS workshops.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The included QR code launches an AI companion trained on this handpan emulator. It guides you step by step, and you can live‑chat with a Compoden engineer via WhatsApp for additional support.
Do I need a metal pan to use the kit?
The kit does not include a metal pan. You can use any flat metal surface — a steel plate, an old cookie tin, or a custom‑cut sheet. The nine piezo sensors mount on the underside with double‑sided tape (not included) and detect strikes through the metal.
Can I load my own handpan samples?
Yes. The 8GB microSD card comes preloaded with high‑quality handpan samples, but you can replace them with your own 16‑bit, 44.1kHz WAV files. Just follow the file naming convention in the build guide to maintain correct sensor‑to‑sound mapping.
Is soldering experience required?
Yes, this is an advanced kit and assumes you can solder. The kit includes a soldering iron and solder wire; the AI companion will show you each joint if you need a refresher. You will solder the piezo disks, resistors, capacitors, amp, and header pins onto the prototype boards.
Nine piezo sensors on a metal pan detect strikes. DFPlayer Mini plays handpan samples per sensor at correct volume.
What's in this kit
- Arduino Mega 2560
- Piezo Disk 27mm x9
- DFPlayer Mini
- MicroSD Card 8GB
- PAM8403 Amp
- 3W 8Ω Speaker
- 1MΩ Resistors x9
- 100nF Caps x9
- 10kΩ Resistors x5
- PCB Prototype Board x3
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
