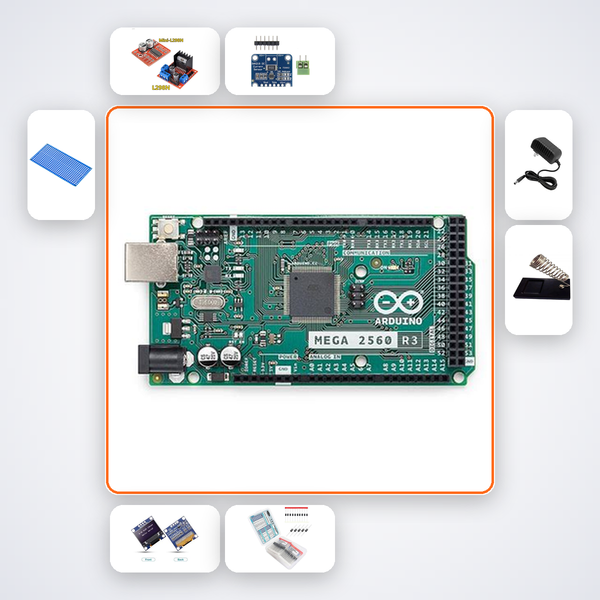

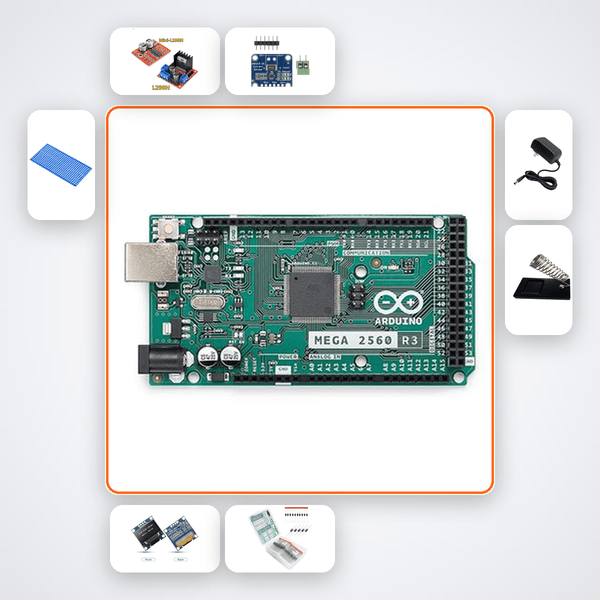

Magnetically Actuated Microrobot

SKU: CDN-KIT-0065-SLD Brand: Compoden Category: Electronics > Robotics & Motion > Project Kits
Rs. 5,020.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Magnetically Actuated Microrobot — an expert-level kit.

Magnetically Actuated Microrobot Kit — Arduino-Controlled Electromagnet Array for Precision Fluid Maze Steering

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 15-20 hrs Skill: Magnetic Actuation and Control

This kit puts you at the forefront of micro-robotics. You’ll assemble an array of eight electromagnets, wire four dual H-bridge drivers, and write Arduino code to generate precise current patterns—all to steer a millimeter-scale magnetic bead through a fluid maze. Whether you're prototyping a lab-on-a-chip experiment or building a capstone project on remote magnetic actuation, this kit gives you the full stack from coils to data logging.

What You'll Build

By the end, you will have a fully functional electromagnetic steering stage. Place a tiny magnetic bead in a petri dish filled with a transparent fluid, and use the OLED display and serial plotter to visualize coil currents and real-time bead position. You can program waypoint sequences, log trajectories onto a microSD card, and even implement closed-loop control using the INA219 current sensors for repeatable paths.

What You'll Learn

  • Design and calibrate an 8-coil electromagnet array for planar magnetic field generation
  • Interface L298N drivers and INA219 high-side current sensors with Arduino Mega to control and monitor coil currents precisely
  • Implement PID or PI control loops in Arduino to steer a magnetic bead in a fluid with sub-millimeter

    External electromagnet array steers a small magnetic bead through a fluid maze. Arduino controls coil current.

    What's in this kit

    Choose your assembly option:

    • Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
    • Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
