Multi-Zone Alarm with Auto Arm

SKU: CDN-KIT-0463-SLD Brand: Compoden Category: Electronics > Security & Surveillance > Project Kits
Rs. 2,010.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Multi-Zone PIR Alarm Kit: Arduino Mega, Keypad, Auto-Arm — an advanced-level kit.

Multi-Zone PIR Alarm Kit: Arduino Mega, Keypad, Auto-Arm

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 5-6 hrs Skill: Alarm logic programming & sensor integration

Kit at a glance

What you build: A multi-zone alarm: three PIRs cover three zones, and when the system is armed an Arduino Mega shows which zone triggered on the OLED, sounds the buzzer and switches a siren relay. It arms itself on a DS3231 schedule, and a keypad code disarms it.

What's in the box

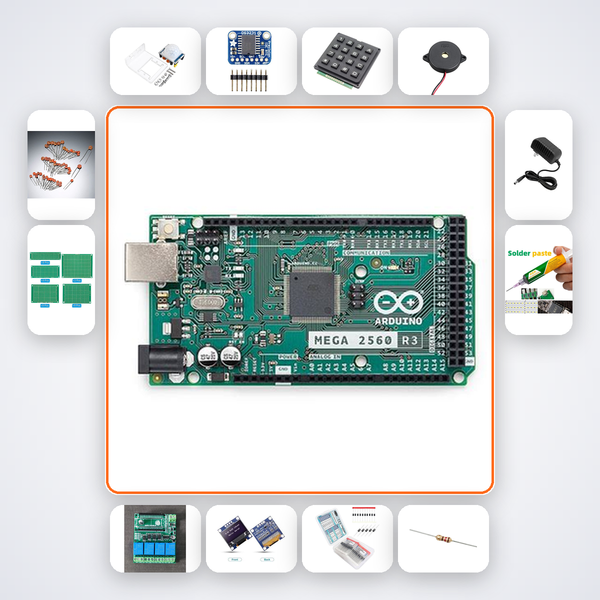

  • Arduino Mega 2560
  • HC-SR501 PIR × 3
  • DS3231 RTC
  • 4x4 Keypad
  • Active Buzzer
  • 5V Relay Module
  • 0.96in OLED
  • 1N4007 Diode × 5
  • 10kΩ Resistors × 10
  • 100nF Caps × 10
  • PCB Prototype Board × 2
  • 12V Adapter
  • Soldering Iron
  • Solder Wire

Power: 12V adapter included. A siren is not included.

Skill level: Advanced (6-8 hours).

Frequently asked questions

Why zones?

You know where the motion was, not just that something moved.

Is it a certified alarm?

No. It's a learning project.

Imagine walking into your room knowing your belongings are protected – even if you forget to lock up. This kit lets you build a multi-zone security system that arms itself automatically at night, detects motion across three zones, and only disarms with a secret code on the keypad. Whether it’s for a hostel room, a laboratory, or a personal workspace, you’ll gain practical experience with real-time clocks, PIR sensors, and Arduino programming.

What You'll Build

You’ll assemble a working alarm system with three motion detection zones, an OLED display showing arm status and zone alerts, and a code-protected disarm sequence. The system auto-arms at pre-set times using the DS3231 RTC, so you never forget to activate it. A 5V relay output can trigger an external siren or light for physical deterrence.

What You'll Learn

  • How to interface multiple PIR sensors with Arduino Mega and manage zone-specific triggers.
  • Programming a DS3231 real-time clock to schedule automatic arm/disarm cycles.
  • Using a 4x4 matrix keypad to input and verify a disarm code.
  • Driving an OLED display to show system status, time, and alarm events.

Kit Contents

Component Quantity
Arduino Mega 2560 x1
HC-SR501 PIR x3
DS3231 RTC x1
4x4 Keypad x1
Active Buzzer x1
5V Relay Module x1
0.96in OLED x1
1N4007 Diode x5
10kΩ Resistors x10
100nF Caps x10
PCB Prototype Board x2
12V Adapter x1
Soldering Iron x1
Solder Wire x1

Who This Kit Is For

This advanced kit is designed for B.Tech (ECE, EEE) students building final-year security projects, Smart India Hackathon participants prototyping real-world solutions, and hostel residents who want a DIY, tamper-proof alarm. If you’ve mastered Arduino basics and are ready to tackle multi-sensor integration and timing logic, this kit delivers a substantial, practical challenge.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code on the box to talk to the Compoden AI companion. It understands this exact project and can guide you through wiring, code debugging, and logic checks. WhatsApp and email backup are also included.

Can I expand the system with more PIR sensors?

Yes, the Arduino Mega has enough digital pins. The AI companion includes notes on adding up to five additional PIR sensors without affecting performance.

How is the disarm code set?

You’ll program the default code in the Arduino sketch; later, you can change it by modifying a variable and re-uploading the code. The keypad entry routine checks the entered digits against this stored code.

What if the alarm triggers while I'm away?

The relay output can be connected to a louder external siren or even a GSM module to send an SMS alert (not included, but the AI companion suggests compatible modules).

Security system auto-arms via RTC schedule. PIR zones trigger alarm. Code disarms via keypad.
