Multi-Zone Alarm with Auto Arm Variant 33
Build a Multi-Zone Auto-Arm Security System with Arduino Mega
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine a burglar alarm that automatically arms itself every night at 10 PM and disarms at 6 AM, protecting your home, lab, or hostel room without you touching a button. This advanced kit lets you build exactly that: a multi-zone security system with three PIR motion detectors, an RTC-based scheduler, and a keypad for secure disarm. Perfect for engineering students tackling capstone projects, Smart India Hackathon prototypes, or anyone wanting a real-world embedded security solution.
What You'll Build
You’ll construct a fully functional alarm panel. The 0.96-inch OLED shows zone status, armed/disarmed condition, and schedule. A 4x4 keypad lets you enter a 4-digit code to disarm. When armed and any PIR triggers, the active buzzer sounds and the relay can activate an external siren or light. The system logs timestamped events via the DS3231 RTC, so you know exactly when each zone was breached.
What You'll Learn
- Designing state-machine logic for arming/disarming cycles with auto-arm scheduling
- Interfacing a DS3231 real-time clock to run precise daily security schedules
- Reading multiple PIR sensors with debounce and false-alarm filtering
- Integrating a matrix keypad for password verification and lockout handling
Kit Contents

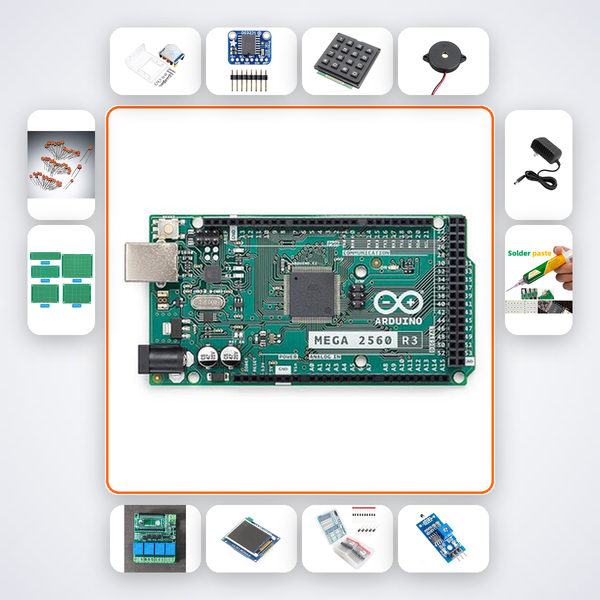

| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| HC-SR501 PIR Sensor | 3 |
| DS3231 RTC Module | 1 |
| 4x4 Matrix Keypad | 1 |
| Active Buzzer | 1 |
| 5V Relay Module | 1 |
| 0.96-inch OLED Display | 1 |
| 1N4007 Diode | 5 |
| 10kΩ Resistor | 10 |
| 100nF Ceramic Capacitor | 10 |
| PCB Prototype Board | 2 |
| 12V DC Adapter | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This advanced kit is designed for B.Tech students in ECE or EEE tackling their final year project or a Smart India Hackathon prototype. It’s also ideal for hobbyists building a sophisticated security system for a shared apartment or hostel room in an IIT, NIT, or VIT campus. If you’ve completed a basic Arduino course and are ready to handle soldering and multi-module integration, you’ll thrive with this kit.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Our AI build companion, trained on this exact project, provides step-by-step debugging. For complex issues, you can also message us on WhatsApp with clear pictures, and a senior builder will guide you.
Can I schedule different arming times for weekdays and weekends?
Yes, the DS3231 RTC supports day-of-week logic. The AI companion will walk you through modifying the code to set distinct schedules for every day of the week.
Can I add more PIR sensors or connect an external siren?
Absolutely. The Arduino Mega has plenty of I/O pins. You can expand up to 10 zones. The on-board 5V relay can drive a high‑power external siren or strobe light directly.
Is this kit suitable for a B.Tech final year project?
Yes. The multi-zone auto‑arm alarm demonstrates real‑time embedded systems, sensor fusion, and human‑machine interface—meeting the complexity expected for ECE/EEE capstone projects. It’s a proven choice for SIH and university demonstrations.
Security system auto-arms via RTC schedule. PIR zones trigger alarm. Code disarms via keypad.
