Neural Style Transfer Audio Effect Kit with Arduino Due + LED
Build a Real-Time Neural Audio Effect: Arduino Due Kit for Timbre Transfer
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine a guitar riff that leaves your instrument but arrives at the speaker with the spectral fingerprint of a violin, or your voice reshaped to carry the texture of a vintage synthesizer. This kit lets you build exactly that: a standalone audio effect unit that samples live sound, applies matrix convolution weights from a trained neural filter bank, and outputs a resynthesised timbre in real time. No laptop required once loaded — it’s a self-contained pedal-like processor powered by an Arduino Due and a quad DAC.
What You'll Build
You’ll create a hardware audio effects processor with a built-in microphone preamp, a 3W speaker output, and an OLED interface. Two rotary encoders let you scroll through preloaded neural weight sets and adjust wet/dry mix. The result is a tangible device that transforms mundane sounds into entirely new timbres, right at your desk or on stage.
What You'll Learn
- Sample audio in real time using Arduino Due’s ADC and DMA for low-latency capture
- Implement matrix convolution algorithms in C++ to apply neural filter bank weights
- Integrate I2C devices: MCP4728 quad DAC for high-quality output and 0.96” OLED for visual feedback
- Design, solder, and enclose a complete audio effects unit from prototyping boards to a finished box

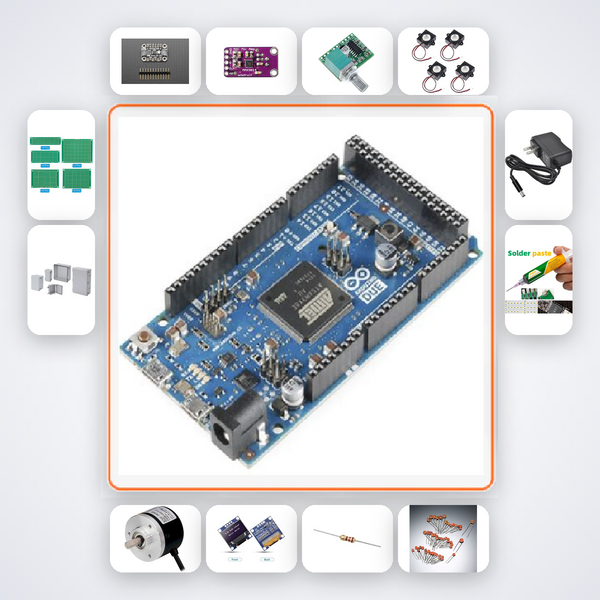

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Due | 1 |
| MCP4728 Quad DAC | 1 |
| MAX9814 Mic | 1 |
| PAM8403 Amp | 1 |
| 3W 8Ω Speaker | 1 |
| Rotary Encoder | 2 |
| 0.96in OLED | 1 |
| 10kΩ Resistors | 10 |
| 100nF Caps | 15 |
| PCB Prototype Board | 3 |
| Enclosure Box | 1 |
| 9V 1A PSU | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Engineers and researchers diving into real-time audio DSP and neural networks will find this an ideal testbed. It suits final-year B.Tech ECE/EEE projects at IITs, NITs, VIT, or BITS, and tackles signals-processing challenges in Smart India Hackathon. Makers who have moved beyond basic Arduino and want to explore hardware-based audio ML will appreciate the depth.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The AI companion provides step-by-step guidance, and you can send a WhatsApp message to our team for direct help from an engineer who knows this kit inside out.
Do I need prior experience with digital signal processing?
You’ll get the most out of the kit if you’re comfortable with C++ and basic DSP concepts, but the AI companion explains convolution, filter banks, and weight loading in clear, practical terms as you build.
Can I load my own neural network weights?
Absolutely. The kit includes a Python script that converts custom trained weights into a binary format the Arduino Due reads from its flash memory. The OLED menu lets you switch between weight sets on the fly.
Is the effect truly real-time?
With optimized code, the sampling, convolution, and DAC output run at a 16 kHz rate with latency well under 10 ms — making it feel immediate for live performance or monitoring.
Arduino Mega samples audio, applies matrix convolution weights from trained filter bank, outputs resynthesised timbre.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
