Particle Physics Bubble Chamber Sim Kit with ESP32 + MPU6050
Simulate Bubble Chamber Tracks in Real Time with ESP32 and a 3.5in TFT
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Turn abstract particle physics into a tangible, real‑time display. This kit lets you generate dynamic bubble chamber collisions—glowing arcs, decaying tracks, and magnetic field curvature—all computed parametrically on an ESP32 and rendered on a crisp 3.5‑inch TFT. Artists, researchers, and educators can observe subatomic interactions evolve frame by frame, with physical tilt control via the onboard MPU6050 gyroscope.
What You'll Build
You’ll assemble a standalone visualization device that draws randomized collision events as luminous tracks on the TFT. Track bending is modulated by simulated magnetic fields adjusted through potentiometers, while the MPU6050 lets you physically rotate the viewpoint—tilt left to see the chamber from a different angle. The enclosure frames it as a self‑contained exhibit or desk piece.
What You'll Learn
- Programming parametric particle trajectory equations in C++ on the ESP32
- Driving a 3.5‑inch ILI9488 TFT with high‑speed SPI and custom graphics routines
- Integrating the MPU6050 IMU for orientation‑based control and gesture detection
- Real‑time physics simulation on a microcontroller, balancing computation and refresh rate
Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| 3.5in TFT ILI9488 | 1 |
| MPU6050 | 1 |
| Tactile Button | 4 |
| 10kΩ Potentiometer | 2 |
| 4.7kΩ Resistors | 5 |
| 100nF Caps | 10 |
| PCB Prototype Board | 2 |
| 5V 2A PSU | 1 |
| Enclosure Frame | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
M.Sc Physics students at IITs and NITs exploring computational simulations, DIY science communicators building interactive exhibits for National Science Day, electronics artists creating generative data installations, and B.Tech ECE/EEE graduates tackling advanced embedded graphics. The project presumes soldering experience and basic C++ familiarity, yet the AI companion smooths the learning curve.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to launch the AI companion trained on this kit; it walks you through each step, and you can also reach out via WhatsApp for hands-on help.
Can I modify the parametric equations to simulate different particles?
Absolutely. The open-source code base makes it straightforward to adjust trajectory curvature, decay paths, and even add new particle types by tweaking the C++ parameter arrays.
Is the MPU6050 necessary, or can I build without it?
The gyroscope enables tilt‑based viewpoint rotation. You can omit it and use the dedicated potentiometer for manual rotation; the AI companion explains both wiring and code modifications.
What background do I need to assemble this kit?
You should be comfortable soldering, reading a schematic, and writing basic C++ for ESP32. The AI companion guides you through pin mapping, calibration, and the physics layer—no prior physics degree required.
ESP32 renders bubble chamber collision tracks in real time on 3.5in TFT using parametric trajectory equations.
What's in this kit

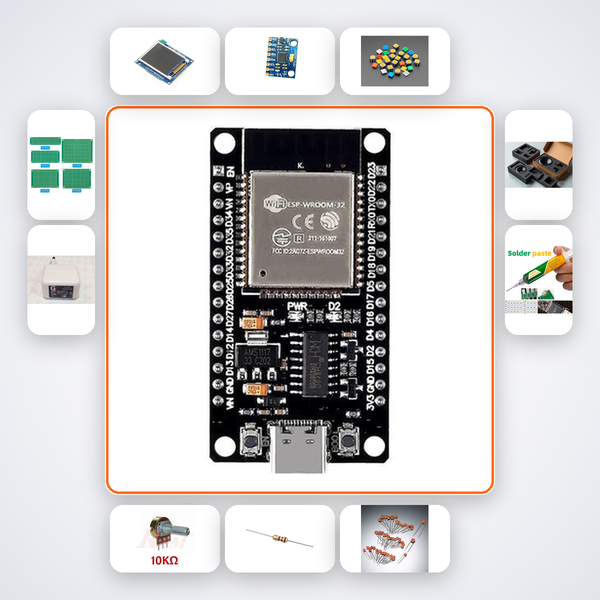

- ESP32 Dev Board
- 3.5in TFT ILI9488
- MPU6050
- Tactile Button x4
- 10kΩ Potentiometer x2
- 4.7kΩ Resistors x5
- 100nF Caps x10
- PCB Prototype Board x2
- 5V 2A PSU
- Enclosure Frame
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
