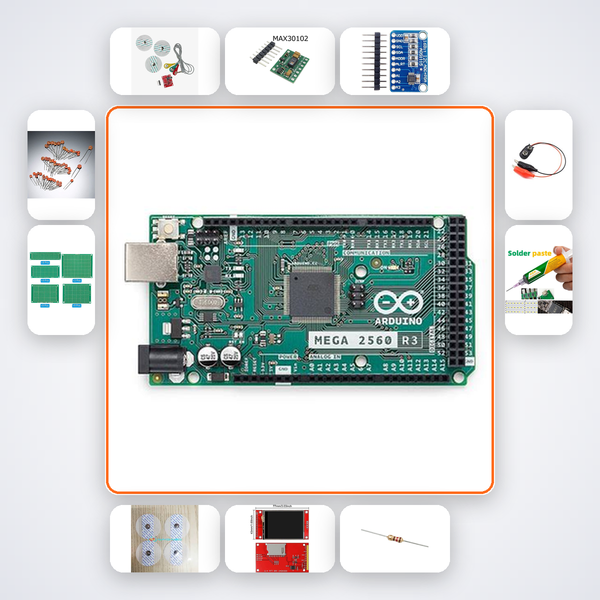

Build a Real-Time ECG, SpO2 & GSR Dashboard with Arduino Mega

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

This kit turns an Arduino Mega into a multi-parameter patient monitor, capturing your heart’s electrical activity, blood oxygen levels, and emotional sweat response—all plotted live on a bright 2.4-inch TFT screen. For B.Tech biomedical students and health tech hackers, it’s a hands-on way to understand front-end analog signal conditioning, multi-channel ADC multiplexing, and GUI design without needing an oscilloscope or MATLAB.

What You'll Build

You’ll assemble and code a dashboard that acquires ECG via AD8232, SpO2 via MAX30102, and galvanic skin response via a voltage divider and ADS1115 ADC. The ILI9341 display renders three scrolling waveforms simultaneously: a real-time ECG trace, a photoplethysmogram for heart rate and SpO2 calculation, and a skin conductance line that rises with stress. All sensor fusion and screen refreshing is done by the Arduino Mega, giving you a compact, portable health monitor ready for demo or prototype integration.

What You'll Learn

• Acquiring and conditioning biopotential signals (ECG) using an instrumentation amplifier and right-leg drive.
• Interfacing optical pulse oximetry sensor (MAX30102) via I2C for raw red/IR data, then converting to heart rate and SpO2.
• Measuring galvanic skin response with a simple voltage divider, amplified by the ADS1115 16-bit ADC for high resolution.
• Programming a TFT display library to render multiple real‑time waveforms with smooth scrolling and overlays.

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Advanced B.Tech ECE or biomedical engineering students building a capstone project or participating in Smart India Hackathon will find this kit a ready-to-run platform for vital sign monitoring. It’s also perfect for health tech enthusiasts prototyping a compact patient monitor for competitions at IITs, NITs, VIT, or BITS Pilani—saving weeks of sensor integration headaches. CBSE Class 12 students with strong Arduino experience can use it for an exceptional school innovation entry.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
