Psychoacoustic Masking Synthesiser Kit with ESP32 + MCP4728 DAC
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Psychoacoustic Masking Synthesiser Kit with ESP32 + MCP4728 DAC — an expert-level kit.
Psychoacoustic Masking Synthesiser Kit with ESP32 + MCP4728 DAC — ESP32 Audio & Music Project
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A room-aware sound masker: a MAX9814 microphone listens to the background noise, and the ESP32 plays shaped noise through a PAM8403 amplifier and two speakers to cover it. Two knobs set the level and tone, shown on a 0.96-inch OLED.
What's in the box

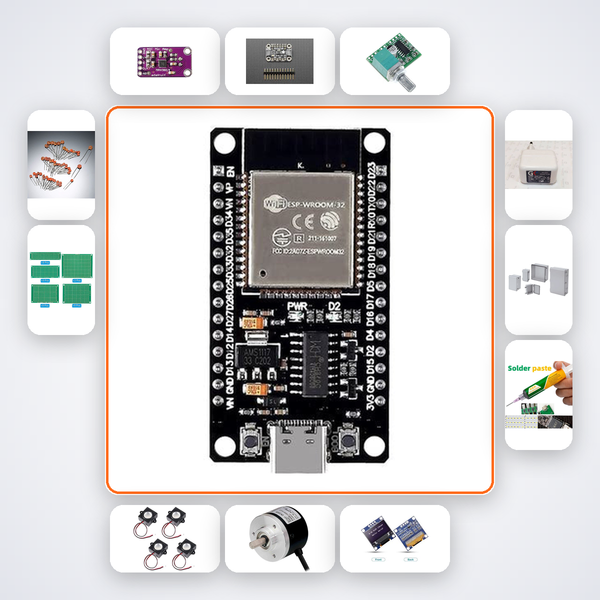

- ESP32 Dev Board
- MAX9814 Mic
- MCP4728 DAC
- PAM8403 Amp
- 3W 8Ω Speaker × 2
- Rotary Encoder × 2
- 0.96in OLED
- 100nF Caps × 15
- PCB Prototype Board × 3
- 5V 2A PSU
- Enclosure Box
- Soldering Iron
- Solder Wire
Power: the 5V supply. No batteries needed.
Skill level: Advanced (15-20 hours).
Frequently asked questions
How does masking work?
A steady sound in the same frequency range makes distracting noises harder to notice.
Will the mic hear its own speakers?
It can. Point the mic away from the speakers and set the code to listen between bursts.
Do I need to solder?
Yes. This is a soldered build, and the kit includes a soldering iron and solder.
This kit enables you to build a synthesizer that applies psychoacoustic masking principles — generating audio signals just below the threshold of human hearing to create subtle layers and illusions. Perfect for sound designers, music producers, and engineering students exploring real-time audio perception, the project uses an ESP32 to analyse ambient sound via a MEMS microphone and produce complementary masked tones through a high-quality DAC and amplifier.
What You'll Build
You will assemble a standalone stereo synthesizer with dual rotary encoder controls, an OLED status display, and a robust enclosure. The system continuously captures ambient audio, computes FFT-based spectral analysis, and synthesises frequency bands that exploit simultaneous and temporal masking, delivering a unique sonic experience. Connect external audio or use the built-in mic — the result is a hands-on tool for sound design and research.
What You'll Learn
- Implementing real-time psychoacoustic models (simultaneous and temporal masking) on the ESP32
- Interfacing and programming the MCP4728 I2S DAC and MAX9814 MEMS microphone
- Performing FFT analysis and synthesizing masked audio bands in C++
- Soldering, assembling, and packaging a multi-PCB audio system with a custom enclosure
Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| MAX9814 Mic | 1 |
| MCP4728 DAC | 1 |
| PAM8403 Amp | 1 |
| 3W 8Ω Speaker | 2 |
| Rotary Encoder | 2 |
| 0.96in OLED | 1 |
| 100nF Caps | 15 |
| PCB Prototype Board | 3 |
| 5V 2A PSU | 1 |
| Enclosure Box | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Who This Kit Is For
This kit is tailored for B.Tech ECE/EEE final-year students undertaking advanced audio DSP projects, researchers at IIT/NIT/VIT/BITS working on psychoacoustics, and professional sound designers or musicians who want to build a custom masking synthesizer. It is also an excellent platform for Smart India Hackathon teams exploring real-time audio processing and embedded systems.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it
ESP32 implements psychoacoustic masking model to synthesise audio in frequency bands just below hearing threshold.
