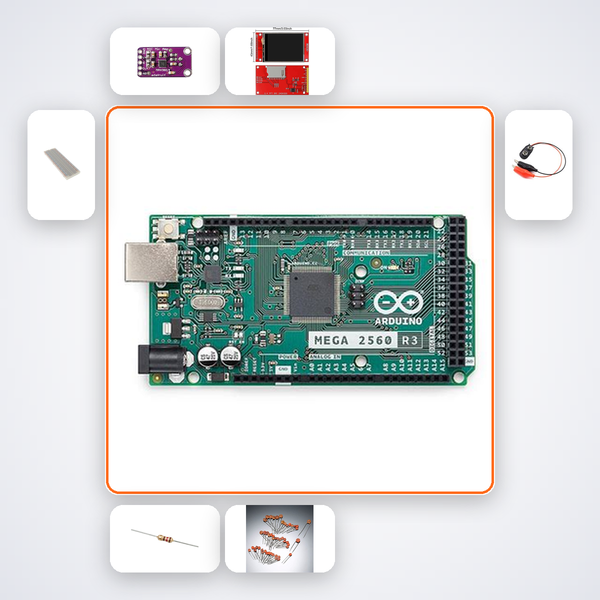

Real-Time 32-Band Audio Visualiser on TFT: Arduino Mega FFT Spectrum Analyzer Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Plug in your music source, and watch a 32-band spectrum dance across the 2.4-inch TFT, complete with a scrolling waveform and peak-hold indicators — all updating at a smooth 30 frames per second. This is not a simple VU meter; this is a real-time Fast Fourier Transform (FFT) engine running on an Arduino Mega, pulling crisp audio from a MAX9814 electret microphone amplifier with automatic gain control.

What You'll Build

A portable, battery-powered audio spectrum analyzer that works with any line-level or microphone input. Use it as a standalone music visualizer, a live-performance display for DJs and musicians, or a powerful signal-analysis tool that reveals the frequency content of any sound in real time. The 320×240 colour display shows vibrant bars, a moving waveform, and peak markers that grab attention.

What You'll Learn

• Implement a 32-band FFT on Arduino using the ArduinoFFT library with minimal CPU overhead, converting raw audio samples into frequency magnitudes every 33ms.
• Capture clean, gain-controlled audio using the MAX9814 microphone amplifier, handling everything from a whisper to a loudspeaker without clipping.
• Drive a 320×240 ILI9341 TFT display at 30fps through hardware SPI, using double-buffering and optimized drawing routines to eliminate flicker.
• Design a responsive GUI with waveform, spectrum bars, and peak-hold indicators that stay perfectly in sync with the music.

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This advanced kit is built for B.Tech ECE and EEE students tackling real-time DSP coursework, for Smart India Hackathon participants prototyping audio-analysis hardware, and for makers at IIT, NIT, VIT, and BITS Pilani who want to add a professional audio visualiser to their music systems or lab setups. It’s also a standout final-year project or portfolio piece for anyone aiming to showcase embedded DSP skills.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
